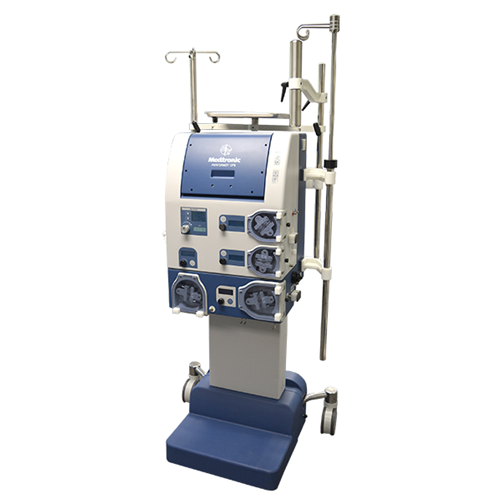

Medtronic Performer CPB Features The Medtronic Performer CPB System, hereafter referred to as the Performer CPB, is an electromechanical extracorporeal support device used during cardiopulmonary bypass procedures. It is an integrated console that can provide total circulatory support of the cardiopulmonary system using the Medtronic® Bio-Pump® Centrifugal Blood Pump. Temperature monitoring using YSI Series 400 probes for 8 temperatures. Flow monitoring for the arterial line using a reusable Transonic ultrasonic flow probe. Oxygen saturation and hematocrit monitoring using an opto-electric sensor. Timers for the pump time, clamp time, and cardioplegia delivery times and intervals. Air Bubble Detection (ABD) of macro-air in the arterial circuit. Air Bubble Detection (ABD) of macro-air in the cardioplegia circuit. Active Air Removal (AAR) technology. Level detection utilizes a pair of level sensors to monitor changes in fluid or blood volume in the reservoirs. 12.1 In color touch screen display. Medtronic Performer CPB Specifications Physical Width: 19.6 In (50 cm) Depth: 22 In (56cm) Height: 39.4 In (100 cm) - 55.1 In (140 cm) Weight: Approx. 198 lbs (90 kg) Environmental Operating Conditions Temperature: 50℉ - 104℉ (10℃ - 40℃) Humidity: 30% - 75% Non-condensing Relative Humidity Atmospheric Pressure: 700 -1060 mBar Transport and Storage Conditions Temperature: -4℉ - 140℉ (-20℃ - 60℃) Humidity: 10% - 90% Non-condensing Relative Humidity Atmospheric Pressure: 700 - 1060 mBar Electrical Data Classification (as for EN60601-1): Class I, type BF Operation Mode: Continuous Voltage: 100 to 240 VAC ± 10% Frequency: 50 to 60 Hz ± 10% Current: max. 6 A (100 to 120V); max. 3 A (220 to 240V) Power Absorption: max. 600 VA Earth Leakage Current: < 300 μA Patient Leakage Current: < 100 μA Ingress Protection(IP code as for IEC 60529): IP 21: protected against solid foreign objects of 12 mm diameter and greater; protected against drop water. Pump PM1 Unidirectional peristaltic pump with manual operating system Flows: Up to 3.7 L/min (9.5 mm (3/8 in) pump segment); Up to 3.7 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 1.8 L/min (6.4 mm (1/4 in) pump segment) Maximum tolerance: ± 10% Pressure Range Within Tolerance: -150 to +500 mm Hg Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage). Pump PM2 Unidirectional peristaltic pump with manual operating system Flows: Up to 1.5 L/min (9.5 mm (3/8 in) pump segment); Up to 1.5 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 0.8 L/min (6.4 mm (1/4 in) pump segment) Maximum tolerance: ± 10% Pressure Range Within Tolerance: -150 to +500 mm Hg Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage). Pump PM3 Unidirectional peristaltic pump with manual operating system Flows: Up to 0.6 L/min (6.4 mm (1/4 in) pump segment); Up to 0.16 L/min (3.2 mm (1/8 in) pump segment) Maximum tolerance: ± 10% Pressure Range Within Tolerance: -150 to +500 mm Hg Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage). Pump PM4 Unidirectional peristaltic pump with manual operating system Flows: Up to 1.1 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 0.7 L/min (6.4 mm (1/4 in) and 3.2 mm (1/8 in) pump segments); Up to 0.6 L/min (6.4 mm (1/4 in) pump segment) Maximum tolerance: ± 10% Pressure Range Within Tolerance: -150 to +500 mm Hg Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage).
