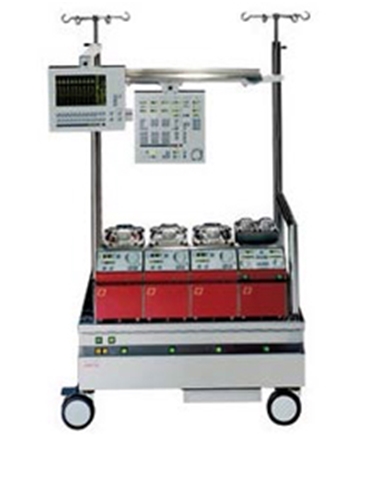

Medtronic Century Heart Lung Machine Features The Medtronic Cobe Century Heart-Lung Machine is a modular system that incorporates features important to the perfusionist; a sturdy and compact design and easy-to-use components at an affordable price. The addition of a Bio-Console 560 centrifugal arterial pump and data management uses Spectrum’s Viper Vision are options that can be easily configured onto the Medtronic Century Heart-Lung Machine. User-friendly system for advanced hemodialysis processes Provides flexibility and medical information management Integrated video display Easy to use automation system provides prescriptions variability and other functions with push-button controls Innovative cartridge blood tubing set design minimizes extracorporeal blood volume and saline requirements Also features built-in arterial and venous pressure monitoring ports Medtronic Century Heart Lung Machine Specifications Perfusion Pumps Dimensions Length: 22.1 in (56 cm) Width: 7.1 in (18 cm) Height: 13 in (33 cm) Weight: 57 lbs (26 kg)s Display Accuracy (RPM) 2% of reading or ± count which ever is greater (without load) Power Power Consumption Maximum: 280 Watts Normal: 150 Watts Leakage Current 100/115 VAC 12mA rms maximum 230 VAC 20 mA rms maximum Occlusion 230 VAC 20 mA rms maximum Console Bases Dimensions 3: Width: 27 in (69 cm); Weight: 97 lbs (44 kg) 4: Width: 34 in (86 cm); Weight: 105 lbs (48 kg) 5: Width: 41 in (104 cm); Weight: 113 lbs (51 kg) 6: Width: 48 in (122 cm); Weight: 121 lbs (55 kg) 7: Width: 55 in (140 cm) Power Electrical Configurations North America: 50/60 Hz; 115 VAC United Kingdom: 50/60 Hz; 230 VAC European Continent: 50/60 Hz; 230 VAC Japan: 50/60 Hz; 100 VAC Line Voltage Requirement ± 10% VAC Circuit Breakers 14 Amp 17/115 VAC 10 Amp 230 VAC Console Bases Dimensions Electronics Module Depth: 21 in (53 cm) Width: 7.1 in (18 cm) Height: 12 in (31 cm) Weight 30 lbs (13.6 kg) Display Module Depth: 2.4 in (6 cm) Without Mount Depth: 8.7 in (22 cm) Without Fixed Mount Width: 13.3 in (34 cm) Height: 9.3 in (24 cm) Weight 9 lbs (4 kg) With Mount Timers (3 Channels) Range: 00:00:00 to 99:59:59 (hours:minutes:seconds) Acuracy: ± 1% of elapsed time Power Power Consumption Maximum: 80 Watts Circuit Breakers 1.0 Amp at 100/115 VAC 0.6 Amp at 230 VAC Leakage Current 100/115 VAC 20 mA rms maximum 230 VAC 40 mA rms maximum Temperature Monitors (6 Channels) Display Range 0-50 ℃ Display Resolution 0.1 Accuracy ± 1.0 ℃ With probe Transducer Compatibility YSI-400 and YSI-500 with calibration Pressure Monitor - 2 Channels Pressure Alarm range: -200 to +400 mmHg Pressure limited range -210 to +450 mmHg Accuracy ±8 mmHg with transducer Air Emboli Protection System (AEPS) AEPS Open Reservoir Level Detection Sensitivity: Within diameter of transducer (1 cm/0.4in.)~ 0 40 Hct. blood temerature 10-40 ℃ AEPS Bubble Detection Sensitivity > 0.7 ml at flow rates < 6 5 Ipm with 3/8” x 3/32” tubing (PVC only) > 0.3 ml at flow rates <3.0 |pm with 1/4” x 3/32” tubing (PVC only) Response time for pump control: <1 second Arterial line tubing compatibility: 3/8” x 3/32” or 1/4” x 3/32” (PVC only) Cardioplegia Delivery System Display Range Last volume delivered: 0 to 9999 ml Total volume delivered: 0 to 9999 ml Time since last delivery: 0 to 99:59:59 (hours: minutes:seconds) Accuracy: ±10% of desired volume
