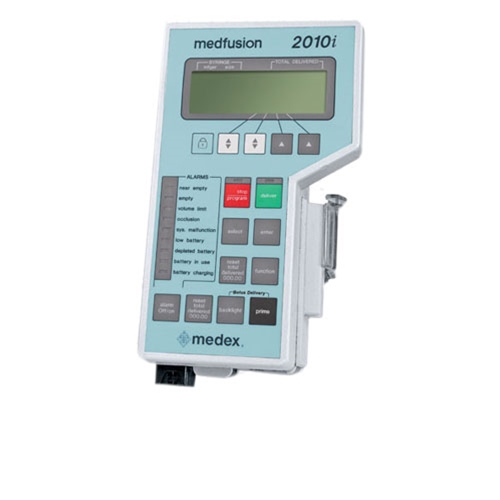

Medfusion 2010i
Details
Medfusion 2010i Features Programmable for four types of infusion: Body Weight Mode, Mass Mode, Continuous Mode, Volume Over Time Mode. In addition, the pump has the ability to store up to 64 user regimens/protocols. Medfusion 2010i Specifications Dimensions Overall Size: 4.5” wide x 3.0” high x 7.5” long Weight: 2.5 pounds Accuracy +/- 3% excluding syringe variations Infusion Modes Body Weight Mode μg/kg/min μg/kg/min MG/kg/min MG/kg/HR Mass Modes μg/min μg/HR MG/min MG/HR mU/min mU/HR U/min U/HR Continuous Mode ml/min ml/HR Volume Over Time Mode Volume/time Flow Rate 0.01 to 378.0 ml/HR dependent on syringe size selected Bolus Delivery In Body Weight, Mass and Continuous Modes Power AC Adapter - DC internal rechargeable batteries Recharge Time No longer than 16 hours with the pump turned off Battery Capacity at 25ºC, a 16 hour charge will operate the pump for approximately 10 hours at 5.0 ml/hr with a 60 ml syringe Alarms/ Alerts Near Empty (5 to 60 minutes), Empty, Dose Volume Delivered, Bolus Complete, Bolus Delivery, Occlusion, System Malfunction, Low Battery, Depleted Battery, Syringe Pops Out, Invalid Size, Invalid Number, Check Clutch, Alarm Temporary Delay: 2 or 60 minutes, Alarm Audio Volume: Soft or Loud, Load Syringe Plunger Status Alerts Visual, Non Audible Stop/Program, Deliver, Battery In Use, Battery Charging, Battery Depleted, Priming, Standby Mode, Back Light Total Delivery From 0.0000 to 9999.9999 MG From 0.00 to 9999.99 ml From 0.0000 to 9999.9999 U Syringe Options/Sizes Becton-Dickinson (B-D*): 1,3,5,10,20,30,60 ml Monoject* (Mono): 1,3,6,12,20,35,60 ml Terum (Teru): 1,3,5,10,20,30,60 ml Becton-Dickinson Glass (BG-G) 1,3,5,10 ml Abboject* *Abot): 50 ml
Additional Information
General Information About IV Therapy IV Therapy IV therapy is used to deliver by infusion, fluids, medication, or nutrients to patients. There are two main types of administration of infusion, volumetric and syringe/PCA. IV Therapy-Volumetric These pumps are used when the accuracy of fluid volume to be infused is critical such as in the case of medications used for infusion of drugs for circulatory support. Volumetric pumps deliver a given volume of fluid per unit time measured in mL/hour. Volumetric pumps can be single or multi channel. Both types allow for the administration of more than one fluid at a time. Single channel employs a piggyback method while multi-channel uses separate tubing set up for the administration of multiple medications or fluids IV Therapy-Syringe Syringe pumps are used to administer small volumes of fluids or medications. (1 mL to 60 mL syringe) Syringe pumps are an effective way to deliver medication with precision while reducing the chance of human error if the medication were to be administered by a member of the medical staff* (of course human error can occur when inputting data or choosing dose rate over time) Like volumetric pumps, syringe pumps can be programmed to deliver the medication over a predetermined time
