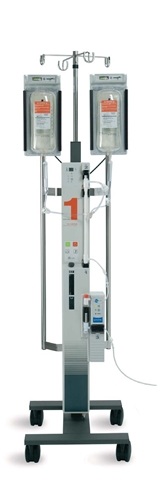

Hotline HL-1200A Rapid Infuser Features The Hotline HL-1200A Rapid Infuser is a fast flow rate fluid warmer. With the D-300 disposable tubing the flow rate can be from 30ml/min to 1100ml/min with a maximal rate of 1400ml/min. The temperature of the fluids delivered to the patient is between 36-40 degrees Celsius and depends on the rate of infusion. The gas vent filter is designed to remove micro bubbles of gas from the line that results from the IV fluids being heated Automated Pressure Chambers Mounted pressure chambers allow fast and easy bag changes. Accommodate standard blood and crystalloid bags. On/Off toggle switch automatically pressurizes chambers to a constant pressure of 300 mmHg. Heat Exchanger Aluminum heat exchanger transfers heat 1000 times faster than plastic. Counter-current recirculating a solution at 42° C providing an effective and stable heating. Easy To Use Disposables are easy to insert and remove. Gas vent/Filter Assembly can be changed without replacing the entire disposable. Durable surface makes it easy to clean. Roller wheels on base make it easy to transport within your facility. Hotline HL-1200A Rapid Infuser Specifications Physical Height: Overall 67 inches (1.7 m) Width: Overall 20 inches (51 cm) Depth: Overall 20 inches (51 cm) Weight Assembled: Dry 63 pounds (28.5 kg) Recirculating Solution Capacity: 0.37 gallons (1.4 L) Air Source Pressure: 300 (294 ± 6) mm/Hg Environmental Operation: 10°C to 40°C; 10% to 95% Humidity Transportation: -18°C to 60°C; 5% to 95% Humidity Storage: 5°C to 40°C; 5% to 95% Humidity Electrical Protection Against Electrical Shock: Class I Equipment Type BF Equipment Mode of Operation: Continuous Type of Current: Alternating Ingress Protection Rating: IPX1 MAINS Power Input (REF H-1200 115 V): 115 VAC, 60 Hz, 12 Amps MAINS Power Input (REF H-1200 230 V): 230 VAC, 50 Hz, 6.3 Amps Auxiliary MAINS Outlet (REF H-1200 115 V): 1.5 Amps Auxiliary MAINS Outlet (REF H-1200 230 V): 0.75 Amps
