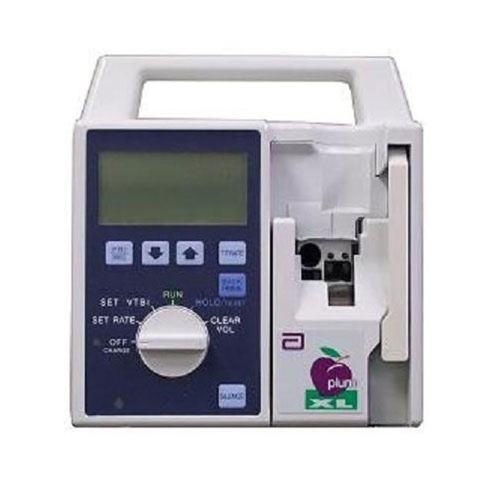

Hospira Plum XL Infusion Pump
Details
Hospira Plum XL Features The Plum¨ XL Micro/Macro is a dual-line volumetric infusion system designed to meet the growing demand for hospital-wide, as well as alternate site and home healthcare, standardization. With its primary line, secondary line, and piggyback fluid delivery capability, the Plum XL is suited for a wide range of medical/surgical and critical care applications. Full compatibility with LifeCare¨ PlumSets¨ administration sets and accessories, and the LifeShield¨ needleless protection systems, makes the Plum XL a convenient and cost-effective infusion system. Volume infused accumulation displays for primary and secondary solutions Flow rate selection from 1 to 999 mL/hr in 1 mL increments (XL) Flow rate selection from 0 to 99.9 mL in 0.1 mL/hr increments and 100 to 999 mL/ hr in 1 mL increments (XLM) Battery operation Self test Simple setup (one hand cassette loading) Automatic memory retention of all previous therapy settings and fluid delivery data until cleared by user Hospira Plum XL Specifications Physical Dimensions: Approximately 8.25H x 7.5W x 8.75D inches (including pole clamp) Weight: Approximately 7.75 lbs (with battery) Casing: High-impact plastic Electrical Power Requirements: 100-130 VAC, 50 to 60 Hz, less than 35 W Power Cord: Hospital-grade AC (mains) cord. 10 feet long, with transparent plug Fuses: 0.5 A, 250 V, slo-blo Battery: Sealed lead-acid, rechargeable 8 V battery, internal to infusion system. Accessible for ease of field replacement, with color-coded leads and polarized connector Battery Operation (XL/XLM): A fully charged new battery provides eight hours of operation at 125 mL/hr, or 1000 mL total volume delivered, whichever occurs first Environment Operating Temperature: 0° to 40° C, 10% to 90% relative humidity Transport / Storage Temperature: -20° to 60° C Transport / StorageRelative Humidity: 10% to 90% Transport / StorageAtmospheric Pressure: 0-10,000 feet (0-3,000m) or equivalent pressuret
Additional Information
General Information About IV Therapy IV Therapy IV therapy is used to deliver by infusion, fluids, medication, or nutrients to patients. There are two main types of administration of infusion, volumetric and syringe/PCA. IV Therapy-Volumetric These pumps are used when the accuracy of fluid volume to be infused is critical such as in the case of medications used for infusion of drugs for circulatory support. Volumetric pumps deliver a given volume of fluid per unit time measured in mL/hour. Volumetric pumps can be single or multi channel. Both types allow for the administration of more than one fluid at a time. Single channel employs a piggyback method while multi-channel uses separate tubing set up for the administration of multiple medications or fluids IV Therapy-Syringe Syringe pumps are used to administer small volumes of fluids or medications. (1 mL to 60 mL syringe) Syringe pumps are an effective way to deliver medication with precision while reducing the chance of human error if the medication were to be administered by a member of the medical staff* (of course human error can occur when inputting data or choosing dose rate over time) Like volumetric pumps, syringe pumps can be programmed to deliver the medication over a predetermined time
