Details

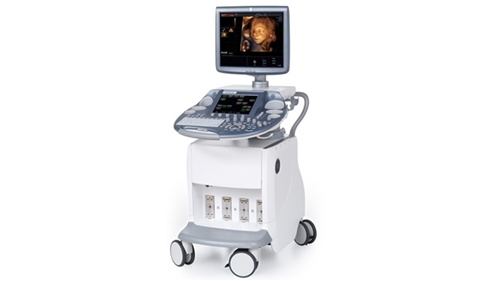

GE Voluson E6 Features The Voluson E6 BT’09 is a premier women’s healthcare system that delivers a new generation of image quality using ground-breaking diagnostic tools for earlier diagnoses and opens the door for imaging innovations to come. High Resolution Flat Panel Display 19" Advanced 4D STIC SonoAVC SonoAVCTMFollicle – Sono Automated Volume Count - SonoVCADTMHeart SonoVCADTMLabor Advanced VCI Scan Assistant Anatomical M-Mode Electrical Height Adjustment - Floating User Interface On Board Archive including Preview and Pre-selection GE Voluson E6 Specifications Dimensions Dimensions Height: 1393 mm (54.8 in) Adjustable: +190 mm (7.48 in); Width: 580 mm (22.8 in); Depth: 930 mm (36.6 in) Weight 131 kg (289 lb) Electrical Power Voltage: 100, 115-130, 220-240 VAC Frequency: 50/60 Hz (+/-2%) Power: Max. 1000 VA with on-board Peripherals Thermal Output: 3446 BTU/h Console Design 3 Active Probe Ports (plus 1 non-imaging port) Integrated HDD (320 GB) Integrated DVD+/- R(W) / CD-R(W) drive On-board storage for Peripherals Wheels - Wheel diameter 150 mm Integrated locking mechanism that provides rolling lock Integrated cable management Front and rear handles Operator Keyboard Floating Keyboard: Rotation: adjustable +/- 40° from center Height adjustable + 200mm Full-sized, backlit alphanumeric keyboard Ergonomic hard key layout Interactive back-lighting Integrated recording keys for remote control of up to 4 Peripherals or DICOM devices, one dedicated DVD recording key Touch Screen 10.4 in High Resolution Color LCD screen Interactive dynamic software menu Brightness adjustable Monitor 19” High Res LCD Monitor with DVI interface Resolution SXGA 1280 x 1024 pixels High brightness with 350 cd/m2 Tilt/Rotate Adjustable Monitor: Tilt Angle: + 10°/- 90° Hor. rotate Angle: +/- 115° Digital brightness & contrast adjustment. OSD, remote controlled by the system. Three default settings: Dark Room, Semi Dark Room, Bright Room Applications Abdominal Obstetrical Gynaecological and Small Parts Pediatric Ortho Urology Cardiology Neurology Operating Modes B-Mode (2D) M-Mode (conventional M-Mode) AMM (Anatomical M-Mode) PW-Doppler with high PRF (PW) CW-Doppler Imaging (CW) High PRF Doppler Mode Color Flow Doppler Mode (CFM) Power Doppler Mode (PD) HD-Flow Doppler Mode (HD-Flow) Tissue Doppler Mode (TD) B-Flow (BF) Contrast Agent Mode (Not available in all Countries)  M-Mode F low Modes (M/CF, M/HD-Flow, M/TD) Volume Mode (3D/4D): 3D Static, 4D Real-Time, VCI-A, VCI-OmniView,STIC/Color, Angio, HD-Flow, Contrast & B-Flow, 4D Biopsy Scanning Methods Electronic Sector Electronic Convex Electronic Linear Mechanic Volume Sweep Transducer Types Sector Phased Array Convex Array Microconvex Array Linear Array Active Matrix Convex Array (1.25, 1.5D) Active Matrix Linear Array (1.25, 1.5D) Volume probes `4D`: Convex Array, Microconvex Array, Linear Array Pencil Probes (CW)
