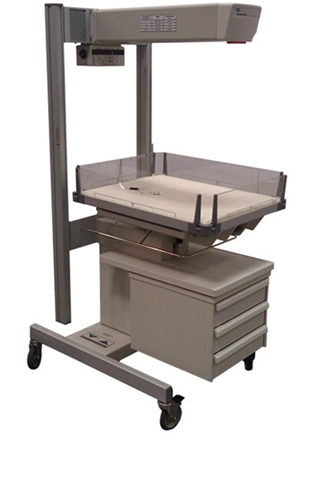

GE Ohmeda 4400 Features The GE Ohmeda 4400 Infant Warmer System uses a manual mode of operation that allows selection of the level of radiant heat output as indicated by the % power display on the control panel and the control circuit then maintains the selected level of radiant heat. Servo mode of operation allows selection of the patient’s control temperature and a control system modulates the radiant heat to maintain the patient at the selected control temperature. Alarms activate to alert the operator of a low or high patient temperature, a skin temperature probe failure, a power failure, equipment failure or a check patient prompt Microprocessor Control 20 Segment Output Control Digital Apgar Timer Powered Elevating Base Pre-Heat Mode Dovetail Rail Mounting System Large bed accommodates larger infants easily Bed height adjusts to comfortable working level The GE Ohmeda 4400 Infant Warmer uses an advanced microprocessor system continuously monitor patient and machine status Easy patient access from any location around unit Heater Power: 550 Watts ±5% at maximum % power setting Examination light Luminance: 100 (nominal) foot candles at center of mattress GE Ohmeda 4400 Specifications Dimensions Height: 183 to 203 cm (72 to 80 in) Depth: Both: 114 cm (45 in) Width: Both: 76 cm (30 in) Weight: 4400: Approx. 91 kg (200 lbs) Standard 3 Drawer Pkg: 25 kg (56 lbs) Rotating 3 Drawer Pkg: 32 kg (70 lbs) Standard Deep Drawer Pkg: 25 kg (56 lbs) Rotating Deep Drawer Pkg: 32 kg (70 lbs) Foot Print: Both: 75 X 114 cm (29.5 X 45 in) Floor Space: Both: 8572 sq cm (1327.5 sq in) Bed Size: Both: 61.2 X 76.5 cm (24 X 30 in) Bed to Floor: 98 - 118 cm (38.75 - 46.5 in) Bed Tilting: Both: ±10° Reverse Trendelenburg and Trendelenburg, damped System Control Characteristics Microprocessor Based Control System: Self-test function performed at power on and continuously during normal operation Heater Output: 0-540 watts power adjustable from 0 to 100% in twenty 5% increments Patient Control (Servo) Mode: 35°C to 37.5°C in increments of 0.1°C (95°F to 99.5°F) Manual Mode: Indicates manual mode heat selection range from 0 to 100% in 5% increments Temperature Variability: Less than ±0.3°C Resolution: ±0.1°C Probe Interchangeability: ±0.1°C Probe Range: 30°C to 42°C (71.6°F to 107.6°F) Proportional heat control with zero voltage switching to minimize radiated and conducted EMI Observation Light: 100-foot candles at center of mattress; estimated lamp life 3000 hours Heater Assembly The radiant heater provides a focused heat source using a cal-rod heating element, which directs controlled heat to the bed surface The heater assembly, located above the center of the bed, consists of the radiant heater, parabolic reflector, integral observation light, and visible red alarm indicator light The heater module rotates 90 degrees to the side to facilitate X-ray procedures. The heater automatically shuts off when in this position Bed The hydraulic tilt system provides tilt of up to +10o for positioning in Trendelenburg and reverse Trendelenburg positions The four bedside panels fold down for complete access to the infant The rear panel includes tubing management slots for retention of ventilation and aerosol tubing The bed incorporates an X-ray Cassette Tray. A grid location marking systems on the side panels matches the tray for location of the cassette. Bed construction is radiolucent A chest drainage hanger allows for convenient placement of chest drainage systems
General Information About Infant Warmers What is an Infant Warmer? New born infant can lose a tremendous amount of body heat during birth and first few hours of life Infant warmers are devices that prevent this loss Also called Over head Radiant Warmers Physiology Have over head electrical heating elements that emit infrared rays, usually focused downward to small area where infant is placed Over head unit provides warm environment while allowing for direct observation and free access to the infant unlike in Incubators Delivery rooms, infant care nurseries, admission, infant surgical areas are some places where warmers are used Insensible water loss is greatly increased with use of warmer Infrared rays are an excellent source of heat and are greatly absorbed by the surface of the skin – peripheral blood is heated Heat is transferred to deeper tissues by conduction and by circulating blood Working with Infant Warmers Warmer is provided with a heating element for directing radiant heat onto an infant support surface and a temperature sensing probe attachable to the skin of an infant Automatic mode: when the actual temperature reaches the set temperature value, control signal cuts off the heater output and thereby regulates temperature The control also operates to reduce the power to the heater when the total energy supplied to the heater exceeds a maximum amount over a predetermined time interval Manual mode: the power level is reduced when a preset temperature is reached or if the temperature is not reached after a predetermined time has elapsed In addition, the heater power is interrupted whenever the control signal or the current to the heater exist independent of the other
