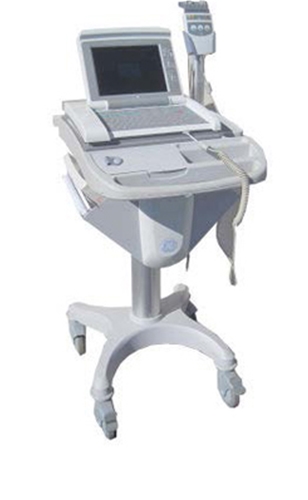

GE Marquette Mac 5000 Features GE's premier ECG system, the MAC 5000, offers gender-specific interpretive software as well as adult and pediatric interpretation. With a compact design for easy operation to increase productivity, the MAC 5000 is part of GE's solutions for networked, noninvasive testing. The MAC 5000 Resting ECG System delivers the advanced capabilities that only the industry's most extensive collection of proven algorithms can offer. The MAC 5000 provides the sophistication required for advanced ECG applications, while its advanced algorithm capabilities include true, 12-lead ECG computer analysis and interpretation. Delivers advanced disease management capabilities. Uniquely delivers seamless connectivity to the information system for data storage and retrieval of ECGs. Ultimate resting ECG system. GE Marquette Mac 5000 Specifications Processing ECG Interpretation 12SL™ Adult and Pediatric ECG Analysis Program Computerized Measurements 12SL™ Adult and Pediatric ECG Analysis Program Optional PHI-RES™ & HI-RES™ Late Potential Analysis Additional ECG Function Vectorcardiography ECG Analysis Frequency 500 samples/second (sps) ECG Storage 150 typical 200 ECGs maximum on removable media (1.44 MB, 3.5diskette) Digital Sampling Rate 4000 samples / second / channel Pre-Acquisition Provides 10 seconds of instantaneous ECG acquisition AC Differential ±10 mV DC offset: ±320 mV Resolution 4.88 µV/LSB @ 500 sps Frequency Response –3 dB @ 0.01 to 150 Hz Common Mode Rejection >140 dB (123 dB with AC filter disabled) Input Impedance >10M@ 10 Hz, defibrillator protected Patient Leakage <10 µA Pace Detect Orthogonal LA, LL and V6; 750 µV @ 50 µs Special Acquisition Functions Disconnected lead detection Electrode impedance Excessive AC noise Baseline wander and muscle tremor messages Heart Rate Meter 30 to 300 BPM ± 10% or 5 BPM whichever is greater. Heart rates outside this range will not be displayed Display Display Type 264 mm (10.4 in) diagonal graphics backlit AM LCD Display Resolution 640 x 480 pixels with waveform enhancement Display Data Heart rate Patient name ID Clock Waveforms Lead labels Speed Gain and filter settings Warning messages Prompts and help messages Writer Writer Technology Thermal dot array Writer Speeds 5 mm/s 12.5 mm/s 25 mm/s 50 mm/s (same as display) Number of Traces 3 6 12 15 user selectable (same as display) Writer Sensitivity / Gain 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV (same as displayed) Writer Speed Accuracy ±2% Writer Amplitude Accuracy ±5% Writer Resolution Horizontal 1000 dpi @ 25 mm/s 200 dpi vertical Paper Type Thermal, Z-fold, perforated, fan fold, 300 sheets/pack Paper Size A size: 214.63 mm x 280 mm (8.45 in x 11 in) A4 size: 210 mm x 297.5 mm (8.27 in x 11.7 in)
