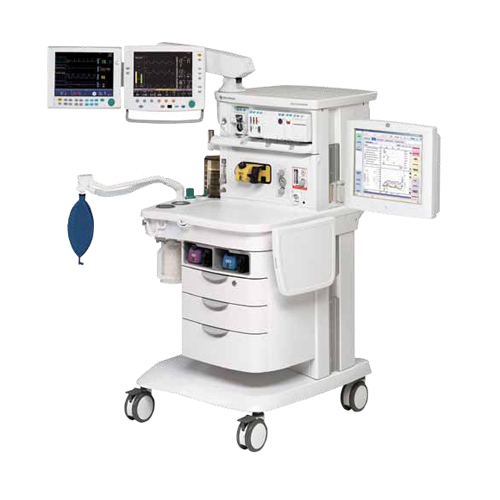

GE Datex Ohmeda Aisys Features The Aisys Carestation for anesthesia is a scalable, flexible, and functionally integrated system, featuring advanced design ventilation, respiratory monitoring, and breathing system. The Aisys Carestation simplifies complex processes with its innovative design. The large-panel displays are mounted on a movable arm with 360° of rotation. You can easily reposition the displays to keep vital signs and ventilation controls in view and in reach at all times. Exceptional Design Flexible and integrated, with the most advanced design, ventilation, vital signs monitoring and Advanced Breathing System (ABS™) Exclusive INview™ Patient Displays so that you can position the patient and ventilation data and controls where you need them Can be integrated with your hospital information system Fully upgradeable to add new technologies as your needs change Proven Clinical Excellence Superior ventilation for neonates to adults VCV (Volume Control) Cardiac Bypass, Volume Control, Pressure Control, PSVProR (Pressure Support with Apnea backup), Synchronized Intermittent Mandatory Ventilation (SIMV) – Volume and Pressure, electronic PEEP, PCVVG (Pressure Controlled Ventilation - Volume Guaranteed) (Optional) Tidal volume compensation Vital signs monitoring with our exclusive technology (Optional) Patient Spirometry™ measures airway pressures, flow, volumes, compliance and airway resistance, breath by breath at the patient’s airway. Entropy aids you in monitoring the state of the central nervous system Neuromuscular transmission (NMT) provides a continuous, quantitative measurement of patient’s responses to nerve stimulation and regional block Advanced Breathing System (ABS) Fewer connections reduce the risk of misconnects and leaks, enhancing patient safety Low circuit volume contributes to a fast response— ideal for low flow cases Rising, microprocessor-controlled bellows provides immediate visual feedback about the patient’s status GE Datex Ohmeda Aisys Specifications Dimensions Unit Height: 52.7″ (133.9 cm) Height (with horizontal arm): 59.2″ (150.2 cm) Width: 28.92″ (73.45 cm) Depth: 34.80″ (88.40 cm) Weight (Approx): 370 lb (168 kg) Top Shelf Weight limit: 100 lb (46 kg) Width: 21.66″ (55.01 cm) Depth: 20.31″ (51.6 cm) Top Shelf (Optional) Weight limit: 50 lb (23 kg) Width: 21.57″ (54.8 cm) Depth: 17.50″ (44.45 cm) Work Surface Height: 34.71″ (88.17 cm) Size: 2365.5″ (2358.1 cm) Folding Side Shelf (Optional) Weight limit: 50 lb (23 kg) Height: 34.7″ (88.17 cm) Width: 11.39″ (28.93 cm) Depth: 14.29″ (36.29 cm) DIN Rail (Optional) Side of Machine: 15.1″ (38.3 cm) Drawers (Internal Dimensions) Small Height: 4.13″ (10.5 cm) Width: 14.88″ (37.80 cm) Depth: 14.82″ (37.64 cm) Large Height: 5.91″ (15.0 cm) Width: 14.88″ (37.80 cm) Depth: 14.82″ (37.64 cm) Absorber Bag Arm (Optional) Arm length: 12″ (30.5 cm) Bag arm height (adjustable): 34.3″ (87 cm) 40.9″ (104 cm) Casters Diameter: 5″ (12.5 cm) Brakes: Individual locking front casters Pendant mounting interface (optional) Height from floor: 30.28″ (769 mm) Suspended mass limit: 800 lb (364 kg) Anesthetic Agent Delivery Vaporizer: Aladin2 Cassette Number of active positions: 1 Cassette Handling No restriction for tilting during storage or handling Agent Capacity Total: 220 mL When cassette indicator shows empty: 140 mL (80 mL residual volume) Accuracy (Applies to both Aladin and Aladin2) All agents in typical operating conditions Fresh gas flow range 1.0 to 10 L/min Ambient temperature 64.4° to 77°F (18° to 25°C) Isoflurane, Sevoflurane ±0.2% v/v of full scale or ±10% of setting (whichever is greater) Desflurane ±0.5% v/v of full scale or ±10% of setting (whichever is greater) In Other Operating Conditions Fresh gas flow range 0.2 to 15 L/min Ambient temperature 50° to 95°F (10° to 35°C) Isoflurane, Sevoflurane ±0.4% v/v of full scale or ±20% of setting (whichever is greater) Desflurane ±1.0% v/v of full scale or ±20% of setting (whichever is greater) Agent setting ranges (Applies to both Aladin and Aladin2) Isoflurane OFF, 0.2 to 5% in fresh gas flow, resolution 0.1% Sevoflurane OFF, 0.2 to 8% in fresh gas flow, resolution 0.1% Desflurane OFF, 1.0 to 18% in fresh gas flow, resolution 0.2%
