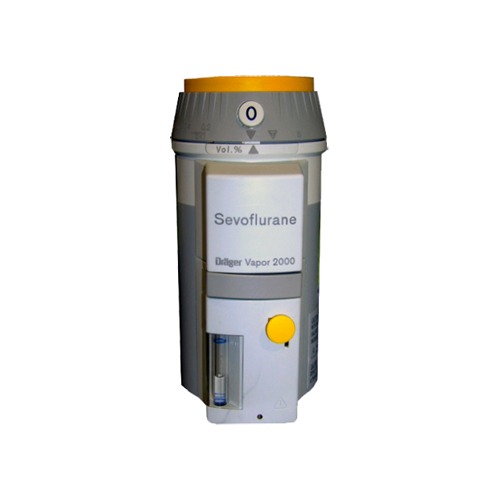

Drager Vapor 2000 Sevoflurane Features The Vapor 2000 is a vaporizer for volatile anesthetic agents with unsurpassed performance. Originally developed for the extreme requirements of mobile army surgical units, these demanding ambient specifications benefit the normal, daily clinical routine in anesthesia. Drager Vapor 2000 Sevoflurane Specifications Dimensions Height: 9.9” Width: 9.3” Depth: 4.3” Weight: 20 lbs Concentration Range Halothane 0.2 to 6% Isoflurane 0.2 to 6% Enflurane 0.2 to 8% Sevoflurane 0.2 to 8% Temperature Range Ambient and Vapor temperature Flow Range 0.25 to 15 L/min; For concentrations >5 vol. % 0.25 to 10 L/min Filling Volume for Anesthetic Agent About 360 mL with dry wick; About 260 mL between min and max mark About 300 mL with moist wick Maximum Angle of Tilt During operation 30° Directive to Standards EN 740 ISO 5358 DIN 13252 ISO 8835 (1997) ASTM F1161 93/42/EEC Medical Device
