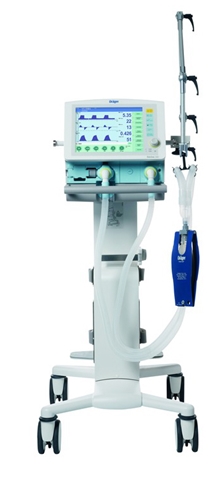

Drager Savina 300 Ventilator

Drager Savina 300 Ventilator

Brand:   Drager
Condition:   SellerRefubrished
The Drager Savina 300 combines the independence and power of a turbine-driven ventilation system with state-of-the-art ventilation modes.
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page


More Dräger Savina 300 Pictures Drager Savina 300 - Soma Technology, Inc.Savina 300 Ventilator - Soma Technology, Inc.Draeger Savina 300 - Soma Technology, Inc. Dräger Savina 300 Features The Drager Savina 300 combines the independence and power of a turbine-driven ventilation system with state-of-the-art ventilation modes. The large color touch screen and intuitive operating system that concentrates on essential features make configuration and operation very simple Intuitive for simple operation and quick configuration Draeger-wide standardized user interface provides confidence in use and reduces training time Quick operational readiness with an automatic device check Intelligent alarm handling for a quick response to patient alarm situations Smooth and sealed surfaces for easy cleaning and disinfection Huge range of ventilation modes (e.g. PC-APRV, VC-MMV, AutoFlow) Stress-free spontaneous breathing with excellent trigger response time thanks to the turbine Free breathing with AutoFlow in volume constant ventilation at a minimum pressure level Dräger Savina 300 Specifications Ventilation Modes VC-CMV / VC-AC VC-SIMV VC-MMV (optional) PC-APRV (optional) PC-BIPAP1) / PC-SIMV (optional) PC-AC (optional) SPN-CPAP Optional Enhancements AutoFlow – Automatic adaption of the inspiratory flow in volume orientated ventilation modes NIV – Non Invasive Ventilation with optimized alarm systems and automatic leakage compensation Capnography - Mainstream CO2 measurement MonitoringPlus - Loops, Trends, user Logbook LPO - Low Pressure Oxygen. Independant oxygen supply Nurse call - Connection for transmitting alarm signals to a central, alarm system General Patient type: Adult, pediatric Respiratory rate: 2/min to 80/min Inspiration time: 0.2 to 10 s Tidal volume: 0.05 to 2.0 L, BTPS2) with option PediatricPlus 0.02 to 2.0 L Inspiratory pressure:: 1 to 99 mbar (or hPa or cmH2O) PEEP/interm. PEEP 0 to 50 mbar (or hPa or cmH2O) Pressure support/ΔPsupp: 0 to 50 mbar (or hPa or cmH2O) (relative to PEEP) Flow acceleration: 5 to 200 mbar/s (or hPa/s or cmH2O/s) O2-concentration: 21 to 100 Vol. % Trigger sensitivity (Flow trigger): 1 to 15 L/min Inspiratory termination criterion: 5 to 75 % PIF (peak inspiratory flow) PC-APRV (optional): Inspiratory time Thigh 0.2 to 22.0 s Expiratory time Tlow 0.1 to 22.0 s Inspiratory pressure Phigh 1 to 95 mbar (or hPA or cmH2O) Expiratory pressure Plow 0 to 50 mbar (or hPA or cmH2O) Displayed Measured Values Airway pressure measurements Max. airway pressure, plateau pressure, mean airway pressure, PEEP 0 to 99 mbar (or hPa or cmH2O) Minute volume (MV): Total MV, spontaneous MV 0 to 99 L/min, BTPS Tidal volume: Inspiratory VT, expiratory VTe, VTspon 0 to 3999 mL, BTPS Total respiratory rate: Total and spontaneous respiratory rate, 0 to 150/min Inspiratory O2-concentration: 21 to 100 % Vol. End-tidal CO2 concentration: EtCO2 0 to 100 mmHg (or 0 to 13.2 Vol% or 0 to 13.3 kPa) Breathing gas temperature: 18 to 48 °C (64.4 to 118.4 °F) Curve displays: Paw(t), Flow (t), Tidal volume (t), CO2 (t) Ventilation ratio (I:E): 1:150 to 150:1 Compliance C: 0.5 to 200 mL/mbar (or mL/hPa or mL/cmH2O) Resistance R: 3 to 300 mbar/L/s (or hPa/L/s or cmH2O/L/s) Leakage minute volume MVleak: 0 to 100 % Rapid shallow breathing RSB: 0 to 9999 (1/min/L) Special Maneuvers (optional): Intrinsic PEEP PEEPi 0 to 100 mbar (or hPa or cmH2O) Exp. Hold Alarms Airway pressures: high / low Expiratory minute volume: high / low Tidal volume: high / low Apnea-alarm time: 15 to 60 sec Spontaneous breathing frequency: high Inspiratory O2-concentration: high / low Inspiratory breathing gas temperature: high EtCO2: high / low Performance Data Maximum (continuous) inspiratory flow: 250 L/min Valve response time T0…90: ≤ 5 ms Control principle: time-cycled, volume-controlled, pressure limited Safety valve opening pressure: 120 mbar (or hPa or cmH2O) Emergency valve: automatically enables spontaneous breathing with filtered ambient air if air and O2 supply should fail. Automatic gas switch-over function if O2 supply fails Output for pneumatic medication nebulizer: synchronized with inspiration Leak compensation: optimized patient-ventilator synchrony adjusts the flow trigger and the inspiratory termination criteria for leaks. tube application: up to 10L/min NIV VC-modes: up to 25 L/min NIV PC-modes: unlimited Operating Data Mains power connection: 100 V to 240 V, 50/60 Hz Current consumption: max. 1.3 A at 240 V, max. 3.4 A at 100 V Battery: internal typically 45 min (optional extension up to 5 h) Turbine exchange interval: 8 years, with no limit in operating hours during this interval Digital Machine Outputs Digital output and input via an RS 232 C interface Dräger MEDIBUS and MEDIBUS.X Gas Supply Air Turbine technology O2 gas supply 3 bar (43.5 psi) - 10 % up to 6 bar (87 psi) Dimensions and Weights Dimensions W x H x D (without trolley) 460 x 383 x 364 ±2 mm (18.11 x 15.08 x 14.33 ±0.08 inch) Weight (basic device) approx. 26 kg (57.3 lbs) without trolley Diagonal screen size 12" TFT color touch screen
