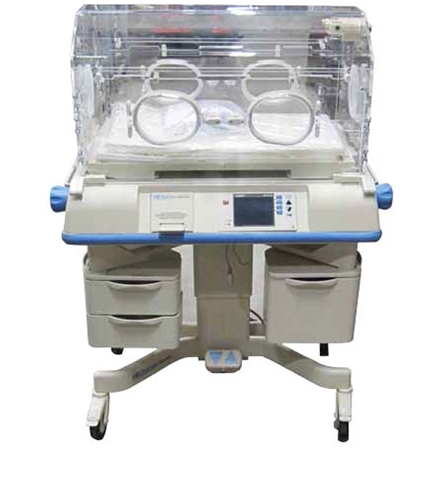

Dräger Isolette C2000 Features The Dräger Isolette C2000 provides an ideal microenvironment system for premature babies and sick infants by providing a controlled environment of warmth and humidity. This high-performance incubator combines excellent thermoregulation, ergonomic design, and dependability. An advanced thermoregulation system, controlled by Dräger’s PID algorithm, keeps the baby in a stable environment. Very low air velocity over the mattress area creates a calm zone that surrounds the neonate to inhibit convective heat loss, while dual air curtains and preemptive regulation mechanisms maintain virtually stable conditions during access to the infant. Thermal Performance Large Mattress and Dual Probes Dual Access Doors 24-hour Data Trends Dräger Isolette C2000 Specifications Dimensions Height: 140 cm (55″) Width: 120.6 cm (47.5″) Depth: 75 cm (29.5″) Weight: 95.5 kg (210 lb) Hood Specifications Access panel opening height: 28.0 cm (11″) Mattress tray size :40.6 x 81 cm (16 x 32″) Mattress to hood height: 41.2 cm (16.25″) Mattress size : 38.1 cm x 73.66 cm (15 in x 29″) Mattress tilt: ±12 ° (±1 °), continuously variable Standard hood includes: front and rear access panel 4 access ports and 2 iris ports 3 left and 3 right tubing grommets – front 2 left and 2 right tubing grommets – rear Cabinet Specifcations Casters: 4 casters, 12.7 cm (5″) and 2 casters with friction brake Storage volume: Approx. 80 l Recessed depth: 15 cm recessed cabinet Front loading cabinet doors: 2 Door closing mechanism: Soft-stop hinges Opening angle of the doors: > 90° Cabinet Stand Accessories Gas tank mount Shelf IV Pole Controller System Algorithm type of the Servo Control System: PID (Proportional Differential Integral) control algorithm Controller with LCD: With brightness control Selectable color combinations: White on blue background (default) or yellow on black background RS-232 output: Yes Keypad lock: Yes Temperature Control Modes Temperature control modes: Skin and air temperature control mode Air mode control temperature range: 20°C (68°F) to 37°C (98.6°F) Air mode control override temp range: 37°C (98.6°F) to 39°C (102.2°F) Skin mode control temperature range: 34°C (93.2°F) to 37°C (98.6°F) Skin mode control override temp range: 37°C (98.6°F) to 38°C (100.4°F) Dual-skin temperature monitoring: Yes
General Information About Incubators What is an incubator? Used mainly to keep a baby’s core temperature stable at 37 degrees Celsius. Also humidifies the air Can add extra oxygen. Physiology Core temperature of the body needs to be kept at a constant temperature of 37 degrees Celsius If temperature goes too high or too low - organs can be damaged Premature babies have undeveloped nervous systems and also lack the energy to regulate their own temperature – need for an incubator Small babies can be given small amount of food for growing. Need for use of all of their energy for growth rather than wasting it on keeping warm - so sometimes incubator is used to help them grow faster Parameters Controlled Temperature Oxygen Humidity levels Indications of Use Prematurity Congenital feebleness - Infants of fair size are sometimes born weak and with poor resistance, shown by subnormal temperature, slight cyanosis, tendency to edema Edema - Premature infants are not seldom subject to a general edema, beginning at the feet. Incubator is the quickest way to relieve the condition Cyanosis, with or without edema, due to feeble circulation, is very common with small infants, and sometimes present with those at full term. Warm, moistened, oxygenated air of incubator does wonders in these cases Subnormal temperature After difficult operative deliveries, the baby is often in a condition of shock leading to asphyxia. Violent efforts to revive it should be limited to a minimum, and the infant placed as soon as possible in the incubator Working with an Incubator The temperature in the incubator is increased/decreased by a heater element below the mattress in the chamber Motor driven fan near the heater draws in fresh air through a filter and blows it past the heater, warming the air Air is directed up through slots into the area above the mattress and circulated around Air temperature is monitored by temperature sensors (Air Temperature Sensor) and is adjusted by controlling the current to the heater Incubator can also monitor the baby’s skin temperature by using a skin temperature probe (Patient Probe), which is stuck onto the skin User can either set the incubator to control the temperature of the air or to control the temperature of the baby’s skin (servo control mode) Supplementary oxygen can be taken in by an oxygen inlet connection where it is mixed with the fresh air through the filter Humidity can be increased by the use of water baths (passive humidification) or by dripping water on a heated element (active humidification) Baby is cared for through special access doors called arm ports. Types of Incubator Regular Incubators Where there is minimal mobility Used in hospitals Clinics Transport Incubators An advance infant health care equipment for the care of infant patients Typically include an incubator provided with a wheeled base which is equipped with life support and monitoring instrumentation, oxygen tanks and other emergency care supplies Used for moving ill or injured infants to hospital and have proven valuable in sustaining the lives of infants during transport Used in Ambulances, Air Planes etc. for transport of infant
