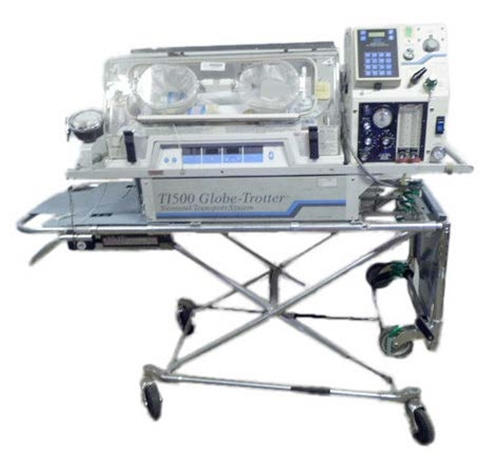

Drager Air-Shields TI500 Globe-Trotter Incubator
Details
Air-Shields TI500 Globe-Trotter Features General Double Wall. Skin Temperature Probes. Examination Lamp. 2 Quiet Touch Port Doors and 2 Access Doors. 1 Iris Port.> Air-Shields TI500 Globe-Trotter Features Dimensions Height: 50.8 cm 20" Width: 52.7 cm, 20.6” Length: 95.9 cm, 37.8” Weight: 49.2 kgs, 108.5 lbs O2 Control Range: 21% to 58% min. Humidity Capacity 50% to 70%. Noise Level 60 dBA² Temperature Set Range 22°C to 38°C Temperature Rise Time < 30 minutes Temperature Variability < 1°C Temperature Overshoot < 2°C Temperature Uniformity < 1°C Humidity Pad Holds 400 ml (14 oz) sterile distilled water with no significant spillage for up to 45° tilt in either direction Relative Humidity 50% - 70% for 10-12 hours using humidity pad Displays On/Standby: illuminates when “ON”. Power Mode: illuminates AC, DC, or external DC. Baby Temperature: displays infant temperature. Set Temperature: illuminates when changing set temperature. Alarm indicators: high temp, power fail, sensor fault, heater temp., air flow, low DC. Battery Type: replaceable, 12 VDC, 24 AH gel-type battery. Rating: incubator maintains a differential of 25°C (77°F) between ambient and setpoint for 90 minutes on 1 battery or 180 minutes on 2 batteries at full heater power. Life Expectancy: 200 complete charge/discharge cycles minimum. Charge time: 20 hours per battery from full discharge.
Additional Information
General Information About Incubators What is an incubator? Used mainly to keep a baby’s core temperature stable at 37 degrees Celsius. Also humidifies the air Can add extra oxygen. Physiology Core temperature of the body needs to be kept at a constant temperature of 37 degrees Celsius If temperature goes too high or too low - organs can be damaged Premature babies have undeveloped nervous systems and also lack the energy to regulate their own temperature – need for an incubator Small babies can be given small amount of food for growing. Need for use of all of their energy for growth rather than wasting it on keeping warm - so sometimes incubator is used to help them grow faster Parameters Controlled Temperature Oxygen Humidity levels Indications of Use Prematurity Congenital feebleness - Infants of fair size are sometimes born weak and with poor resistance, shown by subnormal temperature, slight cyanosis, tendency to edema Edema - Premature infants are not seldom subject to a general edema, beginning at the feet. Incubator is the quickest way to relieve the condition Cyanosis, with or without edema, due to feeble circulation, is very common with small infants, and sometimes present with those at full term. Warm, moistened, oxygenated air of incubator does wonders in these cases Subnormal temperature After difficult operative deliveries, the baby is often in a condition of shock leading to asphyxia. Violent efforts to revive it should be limited to a minimum, and the infant placed as soon as possible in the incubator Working with an Incubator The temperature in the incubator is increased/decreased by a heater element below the mattress in the chamber Motor driven fan near the heater draws in fresh air through a filter and blows it past the heater, warming the air Air is directed up through slots into the area above the mattress and circulated around Air temperature is monitored by temperature sensors (Air Temperature Sensor) and is adjusted by controlling the current to the heater Incubator can also monitor the baby’s skin temperature by using a skin temperature probe (Patient Probe), which is stuck onto the skin User can either set the incubator to control the temperature of the air or to control the temperature of the baby’s skin (servo control mode) Supplementary oxygen can be taken in by an oxygen inlet connection where it is mixed with the fresh air through the filter Humidity can be increased by the use of water baths (passive humidification) or by dripping water on a heated element (active humidification) Baby is cared for through special access doors called arm ports. Types of Incubator Regular Incubators Where there is minimal mobility Used in hospitals Clinics Transport Incubators An advance infant health care equipment for the care of infant patients Typically include an incubator provided with a wheeled base which is equipped with life support and monitoring instrumentation, oxygen tanks and other emergency care supplies Used for moving ill or injured infants to hospital and have proven valuable in sustaining the lives of infants during transport Used in Ambulances, Air Planes etc. for transport of infant
