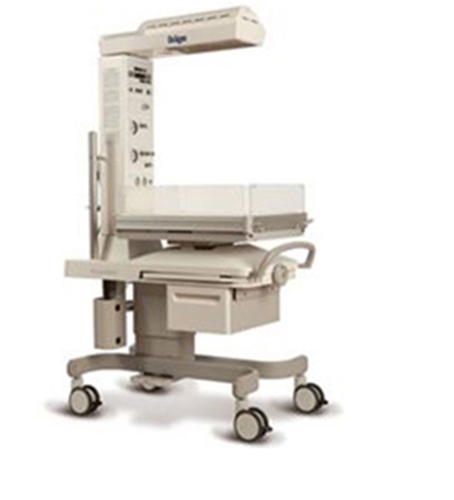

Drager Air-Shields Resuscitaire RW Features From its lightweight, easy-to-maneuver design to convenient ergonomic touches throughout the unit, the Drager Air-Shields Resuscitaire RW simplifies operation to expedite care and help keep caregivers fresh and productive throughout long shifts. Side panels can be easily lowered for access to the baby. The height of the mattress surface can be easily adjusted to the individual caregiver’s personal preference using variable height adjustment pedals found on either side of the unit. Dual access X-ray offers users greater flexibility. Plus, a pass-through drawer makes storing accessories and routinely needed items a breeze. The younger the newborn, the more critical effective thermoregulation becomes. With the Resuscitaire, it all starts with its Silica Quartz element—the most responsive heating element in the industry. The element provides rapid warm up, while its full-length parabolic reflector delivers even heat distribution across the mattress surface to keep the newborn cradled in soothing warmth. Exceptional access from either side Configure to your department's needs Easily access suction Efficiently adjust mattress position Head of the warmer module can swivel up to 90 degrees Automatic Pre-Warm Mode allows long-term, controlled warming of the mattress with no nuisance alarms Drager Air-Shields Resuscitaire RW Specifications Physical Attributes (Without Options / Accessories) Height 72 in (183 cm) Width 26.5 in (68 cm) Depth 44 in (112 cm) Weight (without options /accessories) 220–280 lbs (100–127 kg) Mattress Height from floor 39.4 in (100 cm) Width 21.0 in (53.3 cm) Length 26.0 in (66.0 cm) Thickness 1.0 in (2.54 cm) Maximum capacity 15 lbs (4.54 kg) Maximum Power Requirements Model 120V: 120 V, 50–60 Hz, 750 W Model 220/240V: 220–240 V, 50–60 Hz, 750 W ) LED Examination Light Illumination >0.11 lumens/cm2 (100 ft. Candles) Controller Heating Alarms Check patient System alerts for 5 minutes in Manual Mode every 30 seconds after 10 minutes Baby temperature ±1° C from Set Point High temperature Skin Temp. 39.0 ±0.2 °C Probe Short or open circuit / No probe System fail Indicates System Fail Power fail AC Power Interruption Alarm Silence / Reset Intervals Check patient Resets clock for 10 minutes manual mode Baby temperature 10 minutes High temperature 2 minutes Procedural silence Presilences baby temp alarm for 5 minutes Set Temperature / Heater Output Set temp range 34–38 °C (>37.0° override) Heater output 0–100%, 10% increments Skin temp display 18–43 °C Accuracy ±0.2 °C (31 to 37° C) Resuscitation Module Wall supply pressure 40–75 psi (275–517 kPa) Cylinder pressure 2,900 psi max (19 994 kPa) Patient Gas Supply Flow control range 0–15 LPM Airway pressure limit Adjustable 0–50 cm H2O (0–4.9 kPa) Internal preset limit 60 cm H2O (5.9 kPa)
