Details

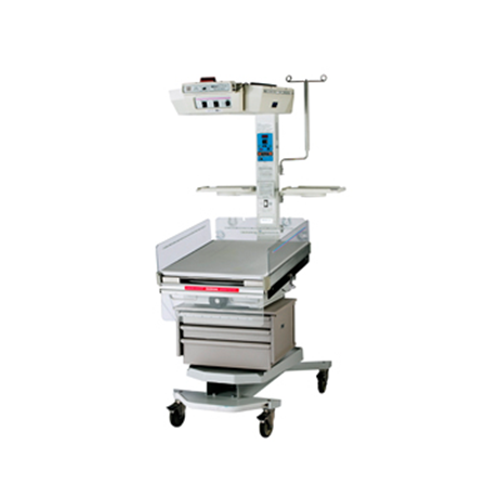

Drager Air-Shields IICS-90 Features Draeger Medical, the leading name in perinatal care, presents a family of Air-Shields® Radiant Warmers to meet the diverse thermoregulatory requirements of your hospital and your patients. From a compact, mobile freestanding warmer to a fully integrated Intensive Care System, these devices can be equipped to supplement existing hospital systems, or to support the most compromised infants with a full range of integrated accessories. Air-Shields® IICS-90’s integrated phototherapy system ensures that optimal therapeutic output is available on demand–without having to disturb the patient or move other equipment. Tempurature Control Intuitive Operation Variable Height Adjustment Variable Bassinet Tilt Side Panels Storage Options Phototherapy Options Resuscitation Warm Weigh Infant Scales Remote Alarm Module Drager Air-Shields IICS-90 Specifications General Power requirements: 100 V AC, 50/60 Hz, 680 W (w/VHA) 110/120 V AC, 50/60 Hz, 680 W 220/240 V AC, 50/60 Hz, 680 W Leakage current: 100 V, 120 V models: <300 μA 220 V-240 V models: <500 μA Heating Element: Quartz (600 W) Examination Light: 100 ft. candles at center mattress 1076 lux; 100 lumens per sq. ft. Skin Temperature Display: Digital LED with 0.1˚ C Resolution Skin Temp. Variability: 0.2˚ C at temperature equilibrium Mattress Tilt: ± 10˚ Heater Module Swivel: ± 65˚ Casters: 5” (Free Standing Warmer has 3 casters 2”) Mattress size in (cm): 29.5 (75) x 23.5 (59.7) Environmental Ambient Operating Temp: 68˚F (20˚ C) - to 86˚F (30˚ C) Humidity: 0 - 95% Altitude: Sea level to 1.9 miles (3 km) Chassis Leakage Current 100,120V models <300 μA 220/240 models <500 μA Phototherapy Option Light Output: 9 μW/cm2/nm Bulb Type: 50 W Quartz Halogen White Light Power Requirements: 100 V AC, 50/60 Hz, 440 W 110/120 V AC, 50/60 Hz, 440 W 220/240 V AC, 50/60 Hz, 440 W
