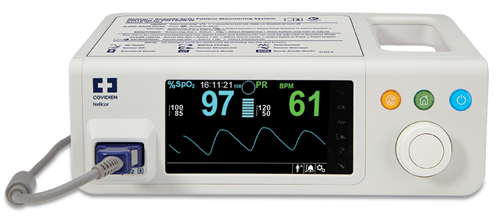

Covidien PM100N Features The Nellcor™ Bedside SpO2 Patient Monitoring System, PM100N, provides at-a-glance access to real-time patient respiratory status information including continuous SpO2 and pulse rate monitoring and trending data. The compact monitor can be placed at the patient’s bedside or easily transported using the convenient, built-in handle. With home care and sleep study modes, the PM100N has functionality for non-hospital settings. The system has password-protection to ensure safe utilization by non-clinical users, and the ability to conveniently download data for further data analysis. Displays plethysmographic waveforms, pulse amplitude and real-time SpO2 and pulse rate data 96-hour trend memory with data captured every four seconds for quick review of changes in patient status Includes SatSeconds™ alarm management, a clinician-controlled feature that has been proven to reduce nuisance alarms Password protected homecare and sleep study modes Covidien PM100N Specifications Dimensions Weight: 1.5 kg (3 lbs) Size: 82 H x 255 W x 155 D (mm), (3.23 H x 10.04 W x 6.10 D (in) Operating Temperature Instrument: 5 °C to 40 °C (41 °F to 104 °F) Transport/Storage Temperature (in shipping carton): -20 °C to 60 °C (-4 °F to 140 °F) Operating Humidity 15% to 93% noncondensing Operating Altitude -170 m to 4877 m (-557 ft to 16,000 ft) Battery Type: Lithium ion Battery Capacity: Minimum of five hours using new, fully charged battery with no alarms; optional 10-hour battery Electrical Instrument Power requirements: 100 to 240 VAC, 50/60 Hz, 45 VA Fuse Rating: Fast‑acting 2 A 32VAC/DC, Fast‑acting 500 mA 32VAC/50DC Saturation Adult: 70% to 100% ± 2 digits Adult and Neonate: low sat 60% to 80% ± 3 digits Neonate: 70% to 100% ± 2 digits Low Perfusion: 70% to 100% ± 2 digits Adult and Neonate with Motion: 70% to 100% ± 4 digits Pulse Rate Adult and Neonate: 20 to 250 bpm ± 3 digits Low Perfusion: 20 to 250 bpm ± 3 digits Adult and Neonate with Motion: 20 to 250 bpm ± 5 digits Performance Measurement Range SpO2: 1% to 100% Pulse rate: 20 to 250 beats per minute (bpm) Pulse amplitude: 0.03% to 20%
