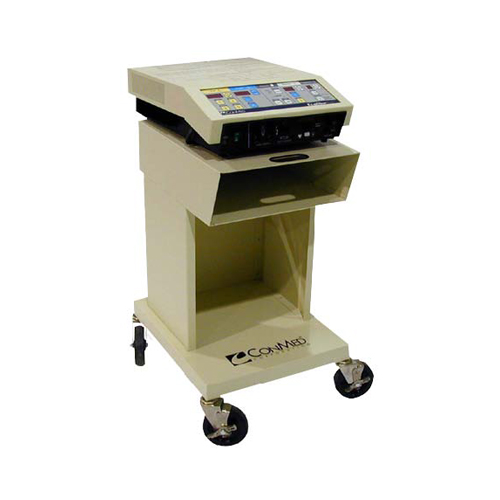

Conmed System 5000 Features General Mode, traditionally used in open procedures. Fluids Mode - Quick start-up in fluid environments, such as urology or arthroscopy. Laparoscopic Mode, Limits output voltage to minimize potential harmful effects of capacitive coupling and insulation breakdown. Pulse Cut, useful when precise cutting effect is needed around delicate structures. Pulse Coag, provides superficial homeostasis via pulsing bursts of coagulation energy. Bipolar Output Meter, provides feedback on desiccation levels via audible and visual indicators. ARM (Automatic Return Monitoring), provides advanced warning of compromised patient to dispersive electrode contact. Conmed System 5000 Specifications Monopolar Cut (blend) Coagulate Max. Energy Output (at rated ohms) (Systems) More than 250 Watts 300 Max Peak Voltage: 820 Pure Max. Energy Output (at rated ohms) (Systems) Up to 150 Watts 80 Max Peak Voltage: 6,350 spray Bipolar (Macro, Micro) Max. Energy Output (at rated ohms) (Systems) Up to 150 Watts 90 Max Peak Voltage: 610 Macro Max. Energy Output (at rated ohms) (Systems) Up to 50 Watts 50 Max Peak Voltage: 170 Micro Dimensions 14” x 35” x 48” (5.5cm x 13.5cm x 18.9 cm") Weight 9.8 lbs. (21.5 kg) Generator Solid-state Frequency 391 cut, 562 coag 391 bipolar Cooling System Convection, fan Independent Output Yes Power Setting Display Yes Visual (Alerts) Yes Audible (Alerts) 2 tones Volume Control (Signals) Yes Power Needed, VAC (Energy) 90-127, 198-253" Bandwidth (Outputs) 2 Footswitch Yes Bipolar System Yes
