Bovie Surgi Center Pro

Bovie Surgi Center Pro

Brand:   Bovie Aaron
Condition:   SellerRefubrished

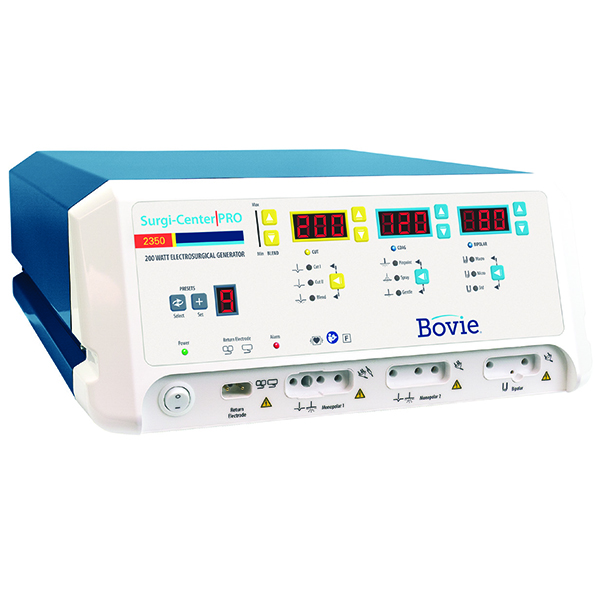

The Bovie Surgi Center Pro is a 200 watt high power, operating room generator, by Bovie®.
Quantity:
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

Details

Bovie Surgi Center Pro Features The Bovie Surgi Center Pro is a 200 watt high power, operating room generator, by Bovie®. The unit incorporates the power and safety of a premium OR generator at a significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. The Surgi-Center Pro ESU offers Pure Cut, four (4) modes of Blend, three (3) modes of Coagulation, Bipolar Coagulation and Bovie FCFS™ technology allowing the Doctor to move almost effortlessly from Monopolar to Bipolar during procedure. Enough power to perform any procedure in a surgery center and most Hospital OR procedures The highest in safety and quality were built into a 200-watt generator for maximum reliability with economy Specialized Laparoscopic Mode Dual Monopolar Spray Activation Bovie Surgi Center Pro Specifications Dimensions Height: 6.5 In (16.5 cm) Width: 14.75 In (37.5 cm) Depth: 18.1 In (46 cm) Weight: < 20 lbs (< 9.07 kg) General Audible/Visible Output Meter: Yes Contact Monitoring Systems: BovieNEM Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C) Cooling System: Passive Cooling Technology: Isolated RF Output Pre-set Feature: Yes Monopolar HP Ports: 2 Dual Activation Tone Alert: Yes Connector Ports/Power Switch: White Bipolar Macro Bipolar Watts: 80 VPeak Max Voltage: 600V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Micro Bipolar Watts: 80 VPeak Max Voltage: 500V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Standard Bipolar Watts: 50 VPeak Max Voltage: 250V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Monopolar Cut I Watts: 200 VPeak Max Voltage: 1000V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Cut II Watts: 200 VPeak Max Voltage: 750V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (1) Watts: 200 VPeak Max Voltage: 1320V Crest Factor (Typical): 1.8 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (2) Watts: 200 VPeak Max Voltage: 1475V Crest Factor (Typical): 2.0 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (3) Watts: 200 VPeak Max Voltage: 1650V Crest Factor (Typical): 2.2 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (4) Watts: 200 VPeak Max Voltage: 1870V Crest Factor (Typical): 2.4 ± 20% Frequency: 490 kHz ± 4.9 kHz Pinpoint Coagulation Watts: 120 VPeak Max Voltage: 1800V Crest Factor (Typical): 3.1 ± 20% Frequency: 490 kHz ± 4.9 kHz Spray Coagulation Watts: 120 VPeak Max Voltage: 4000V Crest Factor (Typical): 6.0 ± 20% Frequency: 350 to 450 kHz Gentle Coagulation Watts: 120 VPeak Max Voltage: 450V Crest Factor (Typical): 1.6 ± 20% Frequency: 490 kHz ± 4.9 kHz
