Details

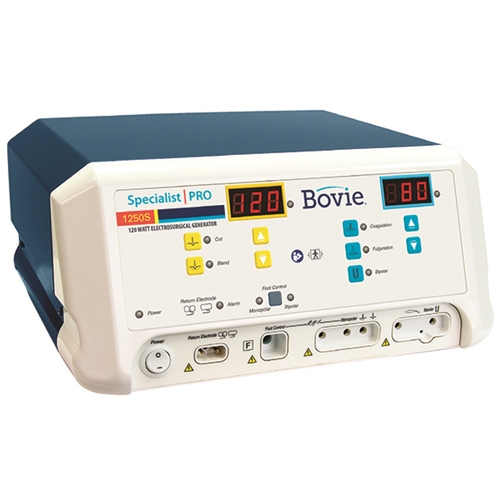

Bovie Specialist Pro Features The Bovie Specialist Pro is the electrosurgery solution for in demand physician offices and specialty facilities. Designed to operate like an operating room generator in a compact lower watt package. The multipurpose unit is ideal for monopolar and bipolar office surgical procedures. The Specialist PRO ESU offers 5 common energy outputs controlled by the new sleek, push-button design, with up to 120 watts of power. The modalities include Cut, Blend, Coagulation, Fulguration and Standard Bipolar. 120 Watts of Cutting Power Monopolar and Bipolar Capabilities Designed to operate like an OR generator in a smaller, lower-powered package Large Illuminated Digital Display Self-Test Circuits Isolated Circuitry Bovie Specialist Pro Specifications Dimensions Height: 6 In (15.2 cm) Width: 10.25 In (26cm) Depth: 12 In (30.5 cm) Weight: < 9 lbs (< 4 kg) General Voltage and Frequency Output Frequency: 350 – 600 kHz Line Voltage: A1250S: 100-240 VAC Line Frequency: 50 - 60 Hz Monopolar Cut Output Power: 120 W @ 500 Ω Output Frequency: 357 kHz ± 50 kHz Open Circuit VPeak Max: 1250V Crest Factor (Rated Load): 2.9 ± 20% Blend Output Power: 90 W @ 800 Ω Output Frequency: 357 kHz ± 50 kHz Repetition Rate: 30 kHz ± 5 kHz Open Circuit VPeak Max: 1850V Crest Factor (Rated Load): 3.3 ± 20 Bipolar Coagulation Output Power: 80 W @ 1000 Ω Output Frequency: 475 kHz ± 19 kHz Repetition Rate: 57 kHz ± 5 kHz Open Circuit VPeak Max: 3300V Crest Factor (Rated Load): 5.5 ± 20% Fulguration Output Power: 40 W @ 1000 Ω Output Frequency: 410 kHz ± 50 kHz Repetition Rate: 25 kHz ± 5 kHz Open Circuit VPeak Max: 3900V Crest Factor (Rated Load): 7.7 ± 20% Bipolar Output Power: 30 W @ 200 Ω Output Frequency: 520 kHz (-14 kHz, +29 kHz) Repetition Rate: 32 kHz ± 5 kHz Open Circuit VPeak Max: 1200V Crest Factor (Rated Load): 6.9 ± 20%
