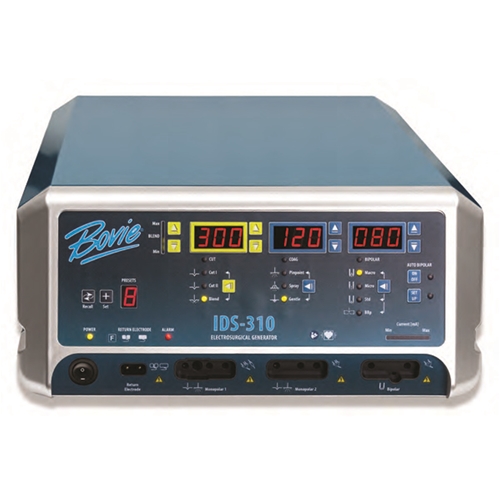

Bovie IDS 310 Features The Bovie IDS 310 was designed in conjunction with OR clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options, and special Laparoscopic modes. These modes were included to assist surgeons in tailoring all electrosurgery needs for their variety of surgical applications and user preferences. Bovie Bipolar - Pulsing coagulation for quick and powerful coagulation of tissue Auto Bipolar - Offers immediate and simplified tissue coagulation with minimal tissue damage Specialized Laparoscopic Mode - Recalls up to 10 presets and up to 6 bipolar output preferences Adjustable Power During Activiation Bovie IDS 310 Specifications Dimensions Height: 6.5 In (16.5 cm) Width: 14.75 In (37.5 cm) Depth: 18.1 In (46 cm) Weight: < 20 lbs (< 9.07 kg) General Contact Monitoring Systems: BovieNEM Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C) Cooling System: Passive Cooling Technology: Isolated RF Output Pre-set Feature: Yes Monopolar HP Ports: 2 Dual Activation Tone Alert: Yes Connector Ports/Power Switch: Black Bipolar Macro Bipolar Watts: 150 VPeak Max Voltage: 600V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Micro Bipolar Watts: 80 VPeak Max Voltage: 450V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Standard Bipolar Watts: 50 VPeak Max Voltage: 300V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Bovie Bipolar Watts: 225 VPeak Max Voltage: 250V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Auto Bipolar Watts: 80 Frequency: 490 kHz ± 4.9 kHz Monopolar Cut I Watts: 300 VPeak Max Voltage: 1000V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Cut II Watts: 300 VPeak Max Voltage: 750V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (1) Watts: 200 VPeak Max Voltage: 1320V Crest Factor (Typical): 1.8 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (2) Watts: 200 VPeak Max Voltage: 1475V Crest Factor (Typical): 2.0 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (3) Watts: 200 VPeak Max Voltage: 1650V Crest Factor (Typical): 2.2 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (4) Watts: 200 VPeak Max Voltage: 1870V Crest Factor (Typical): 2.4 ± 20% Frequency: 490 kHz ± 4.9 kHz Pinpoint Coagulation Watts: 120 VPeak Max Voltage: 1800V Crest Factor (Typical): 3.1 ± 20% Frequency: 490 kHz ± 4.9 kHz Spray Coagulation Watts: 120 VPeak Max Voltage: 4000V Crest Factor (Typical): 6.0 ± 20% Frequency: 350 to 450 kHz Gentle Coagulation Watts: 120 VPeak Max Voltage: 450V Crest Factor (Typical): 1.6 ± 20% Frequency: 490 kHz ± 4.9 kH
