Details

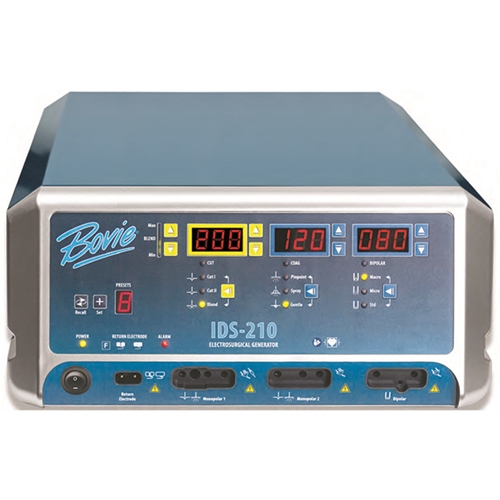

Bovie IDS 210 Features The Bovie IDS 210 is a 200 watt high power, operating room generator, by Bovie. The unit incorporates the power and safety of a premium OR generator at significant savings to the medical facility. The system delivers 12 monopolar and bipolar RF energy modalities to provide a high level of surgical precision. Engineered with the safety of the patient in mind, the IDS-210 includes technology such as Bovie NEM return split pad contact quality monitoring, Bovie FDFS tissue sensing technology, self-test circuits, as well as specialized modalities for laparoscopic and delicate procedures. Two Cut Modes Four Levels of Blend Three Coagulation Modes Three Bipolar Modes Fast Digital Feedback System Three Front Panel Accessory Connections and two rear panel footswitch connections Bovie IDS 210 Specifications Dimensions Height: 6.5 In (16.5 cm) Width: 14.75 In (37.5 cm) Depth: 18.1 In (46 cm) Weight: < 20 lbs (< 9.07 kg) General Contact Monitoring Systems: BovieNEM Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C) Cooling System: Passive Cooling Technology: Isolated RF Output Pre-set Feature: Yes Monopolar HP Ports: 2 Dual Activation Tone Alert: Yes Connector Ports/Power Switch: White Power Display Accuracy: ± 20% or 5 watts whichever is greater Bipolar Macro Bipolar Watts: 80 VPeak Max Voltage: 600V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Micro Bipolar Watts: 80 VPeak Max Voltage: 500V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Standard Bipolar Watts: 50 VPeak Max Voltage: 250V Crest Factor (Typical): 1.5 ± 20% Frequency: 490 kHz ± 4.9 kHz Monopolar Cut I Watts: 200 VPeak Max Voltage: 1000V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Cut II Watts: 200 VPeak Max Voltage: 750V Crest Factor (Typical): 1.7 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (1) Watts: 200 VPeak Max Voltage: 1320V Crest Factor (Typical): 1.8 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (2) Watts: 200 VPeak Max Voltage: 1475V Crest Factor (Typical): 2.0 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (3) Watts: 200 VPeak Max Voltage: 1650V Crest Factor (Typical): 2.2 ± 20% Frequency: 490 kHz ± 4.9 kHz Blend (4) Watts: 200 VPeak Max Voltage: 1870V Crest Factor (Typical): 2.4 ± 20% Frequency: 490 kHz ± 4.9 kHz Pinpoint Coagulation Watts: 120 VPeak Max Voltage: 1800V Crest Factor (Typical): 3.1 ± 20% Frequency: 490 kHz ± 4.9 kHz Spray Coagulation Watts: 120 VPeak Max Voltage: 4000V Crest Factor (Typical): 6.0 ± 20% Frequency: 350 to 450 kHz Gentle Coagulation Watts: 120 VPeak Max Voltage: 450V Crest Factor (Typical): 1.6 ± 20% Frequency: 490 kHz ± 4.9 kHz
