Details

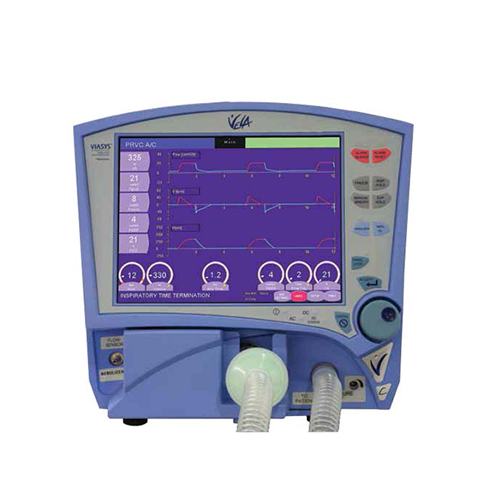

BD CareFusion Viasys Vela Features The VELA® ventilator is a full-function and noninvasive positive pressure ventilator (NPPV) that provides high-performance tools to support patients throughout the continuum of care. Available as three models, the VELA ventilator offers a variety of features that can be customized to your specific ventilation needs. Also enabling analytics, the ventilator helps you support operational improvements and enhance patient care. Precision servo controlled gas delivery turbine and active exhalation that gives you the performance you need to treat all of your pediatric and adult patients. Flat panel, color LCD and touch screen provide flexibility with simplified controls to improve safety Full function conventional ventilator and noninvasive positive pressure ventilator (NPPV) BD CareFusion Viasys Vela Specifications Setup Humidifier: Active and passive humidification Patient setu:p Alphanumeric patient ID Leak compensation: ON, OFF Mode Mode type: A/C, SIMV, CPAP/PSV, NPPV (AC, SIMV, CPAP/PSV), PRVC Breath type: Volume, pressure, APRV/BiPhasic Apnea backup: Volume, pressure Primary Settings Rate: 2 to 80 bpm Tidal volume: 50 mL to 2.0 L Inspiratory pressure: 1 to 100 cmH2O Peak flow: 10 to 140 L/min, (180 L/min spontaneous maximum) Inspiratory pause: OFF, 0.1 to 2.0 seconds Inspiratory time: 0.3 sec to 10.0 seconds Pressure support ventilation: (PSV) OFF, 1 to 60 cmH2O PEEP: 0 to 35 cmH2O Flow trigger: 1 to 20 L/min %O2: 21% to 100% FiO2 Pressure: high /pressure low 0 to 60 cmH2O/ 0 to 40 cmH2O Time high / time: low 0.3 to 30 seconds / 0.3 to NPPV Pinsp: 1 to 40 cmH2O NPPV PSV: OFF, 1 to 40 cmH2O Advanced Settings Bias flow: 10 to 20 L/min Volume limit: 50 mL to 2.5 L (available in PRVC/Vsync only) Assured volume: OFF, 50 mL to 2.0 L PC flow cycle: OFF to 70% PSV cycle: 5% to 70% PSV Tmax: 0.3 to 3.0 seconds Waveform: Decelerating, square T high sync: 0% to 50% T high PSV: ON, OFF T low sync: 0% to 50% Sigh: ON, OFF Vsync: ON, OFF Manual Controls Manual breath One breath Expiratory hold Maximum 6 seconds Inspiratory hold Maximum 6 seconds Increase O2 100% O2 for 3 minutes MIP/NIF Maximum 30 seconds Nebulizer 1 to 60 minutes, synchronized Alarms High pressure 5 to 120 cmH2O Low pressure OFF, 2 to 60 cmH2O Low minute volume OFF, 0.1 to 99.9 L High breath rate OFF, 3 to 150 bpm Apnea interval 10 to 60 seconds Alarm volume 65 to 85 db at one meter Low EtCO2 OFF, 1 to 150 mmHg (0.1 to 20 kPa) High EtCO2 OFF, 5 to 150 mmHg (0.7 to 20 kPa)
