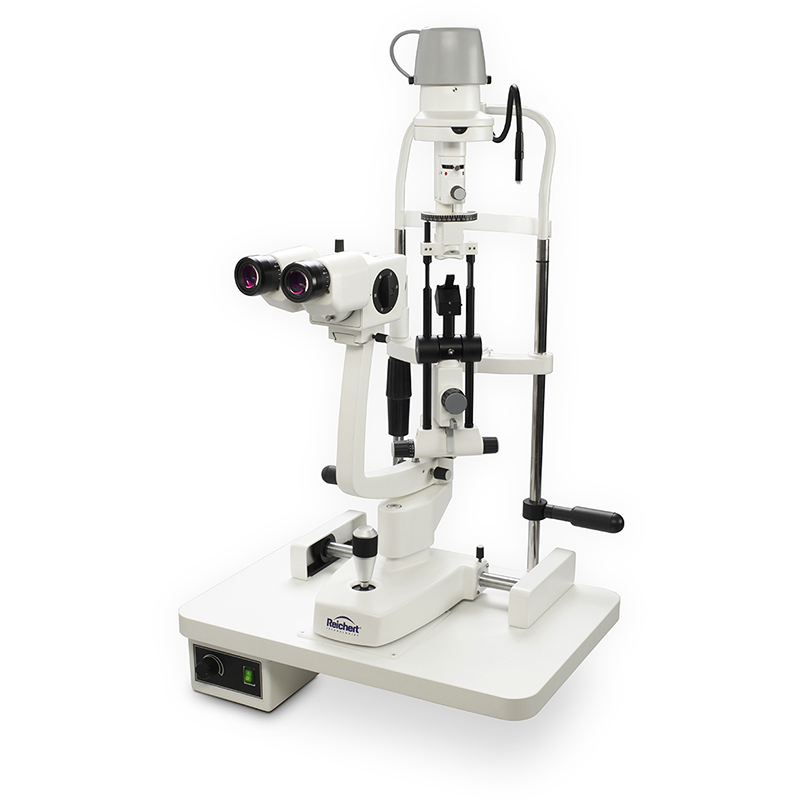

Xcel® 455 Slit Lamp
Details
The all-new Xcel 455 Slit Lamp offers the performance, versatility, and exceptional value to meet the needs of the most discriminating operator. Lenses with high efficiency coatings provide bright, even illumination. A large field of view with high resolution and depth of focus offers an excellent stereo binocular view. Traditional tower illumination design High efficiency multilayer optical coatings for enhanced light transmission Wide-field optics 5 step magnification 6.5X, 10X, 16X, 25X, 40X 12.5X magnification eyepieces Slit inclination up to 20 degrees Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Filters Halogen illumination Smooth base movement and slit elevation with X Y Z joystick
Tech Specs
Catalog Number 15140 Xcel 455 Slit Lamp Microscope Microscope Type: Galilean Magnification Change: 5 Step Drum Rotation Eyepiece: 12.5x Magnification Ratio: 6.5x, 10x, 16x, 25x, 40x Fields of View: 37, 24, 15, 9.5, 6 mm PD Range: 49 – 78 mm Diopter Adjustment: +/- 6 D Working Distance: Slit Lamp Slit Illumination: 6V 20W Halogen Slit Width: 0 – 12 mm Slit Length: 1.5 – 12.5 mm Slit Apertures: 0.3, 1, 3, 5, 9, 12 mm Slit Rotation: 0 – 180 Degrees Slit Inclination: -5, -10, -15, -20 Degrees Filters: Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Illuminance Range: 0 to >50000 lux Base Movement Ranges Longitudinal (In/Out): 110 mm (4.3 in.) Lateral (Left/Right): 110 mm (4.3 in.) Vertical (Up/Down): 30 mm (1.2 in.) Chinrest Fixation Lamp: White LED Vertical Movement: 70 mm (2.8 in.) Power Voltage: 100 – 240 VAC Power Input (max): 56 – 73 VA Frequency: 50/60 Hz Fuses Time-Lag: (1.6A, 250V), 5x20 mm Dimensions/Weight Height: 66.0 cm (26.0 in.) Width: 45.7 cm (18.0 in.) Depth: 34.3 cm (13.5 in.) Table Dimensions: 46.5 x 32 cm (18.3 x 12.6 in.) Weight, Unpacked: 17.8 kg (39.3 lbs.) Additional Catalog Numbers 15121 Halogen Lamp 12591 CT100 Tonometer 12595 Tonometer Prism
