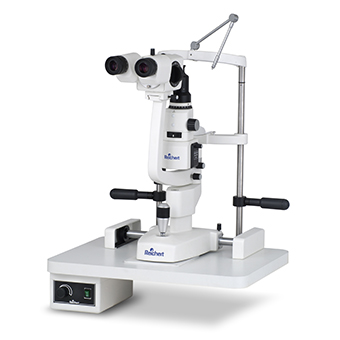

Xcel® 255 Slit Lamp
Details
The Xcel 255's wide-field optics provide excellent clarity and detail. The compact design, combined with conveniently placed controls, make this slit lamp a pleasure to operate. The outstanding optical performance, features, and quality, combined with an affordable price, make the Xcel 255 slit lamp a compelling value. Compact design Wide-Field optics Halogen lamp 10X, 16X, 25X magnification Feather-touch XYZ joystick
Tech Specs
Catalog Numbers: 15120 XCEL 255 Slit Lamp 12597 CT 210 Tonometer Mount 12598 CT 210 Tonometer 15122 1 port beam splitter 15121 6V 20W Halogen Lamp 12596 Tonometer Prism Microscope: Galilean Magnification Change: 3 step rotation Eyepiece: 12.5x Magnification Ratio: 10x, 16x, 25x PD Range: 48.5 - 80 Dioptric Adjustment: ±5 Slit Width: 0 - 13.5mm Slit Length: 0 - 13.5 mm Slit Apertures: 0.6, 5.8, 9, 13.5 mm Slit Rotation: 0 - 180° Filters: Red free, cobalt blue, heat absorbing Movement Ranges: Longitudinal (in/out) 90 mm Lateral (left/right) 107 mm Vertical (up/down) 30 mm Chin Rest Range 80 mm Illumination: 6V 20W halogen Voltage: 90 - 250 VAC Frequency: 50/60 Hz Table Base Dimensions: 465 x 316 mm Weight: (packed) 52 lbs. (23.64 kg)
