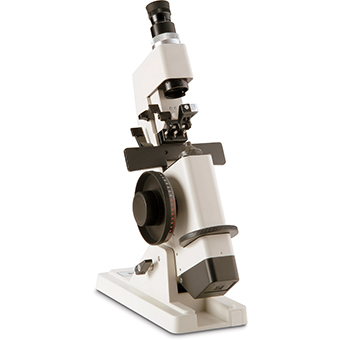

LED Illuminated Target The ML1's LED light source ensures that you will never need to change bulbs again. The comfortable glare-free, green illumination and sharp mires make measurements easy. Cordless Battery operated and completely cordless, the ML1 Manual Lensometer gives you total mobility and no cord clutter. The LED's low power consumption and auto sleep feature ensure a long battery life. The standard AAA batteries are inexpensive and available everywhere. Unrestricted tilting angle The ML1 can be adjusted to any angle, providing maximum convenience while measuring. Full 90 degrees tilting allows for easy measurement of contact lenses. Accepts large diameter lenses The ML1 can measure lenses from 24 to 90mm in diameter and uses a bold crossline target for easier reading. Prism compensator The prism compensator extends the range to 15 diopters for more flexibility. Reichert Quality The Reichert name ensures a high quality, reliable instrument that you can count on every time.
Catalog Number: 15110 ML1 Lensometer Vertex Power: Range +25 to -25 diopters Step 0.125 diopters up to ±3 diopters 0.25 diopters beyond ±3 diopters Prismatic Power: Range 5 prism diopters Step 0.5 prism diopters up to 2 diopters 1 diopter beyond 2 diopters Cylindrical Axis: Range 1 to 180 degrees, step 1 degree Target Method: American Crossline Lens Diameters: 24 to 90 mm Tilting Angle: 30 to 90 degrees Eyepiece Focusing: +7D to -10D Light Source: LED Dimensions: 130 x 475 x 330mm. (W x H x L) Weight: 10.8 lbs. (4.9 kg) Standard Accessories: 1 Dust cover, 1 contact lens holder Prism Compensator: Diopter Range: 15 diopters Graduations: 1 diopter step Angle scale: 0-180 degrees Graduations: 5 degrees
