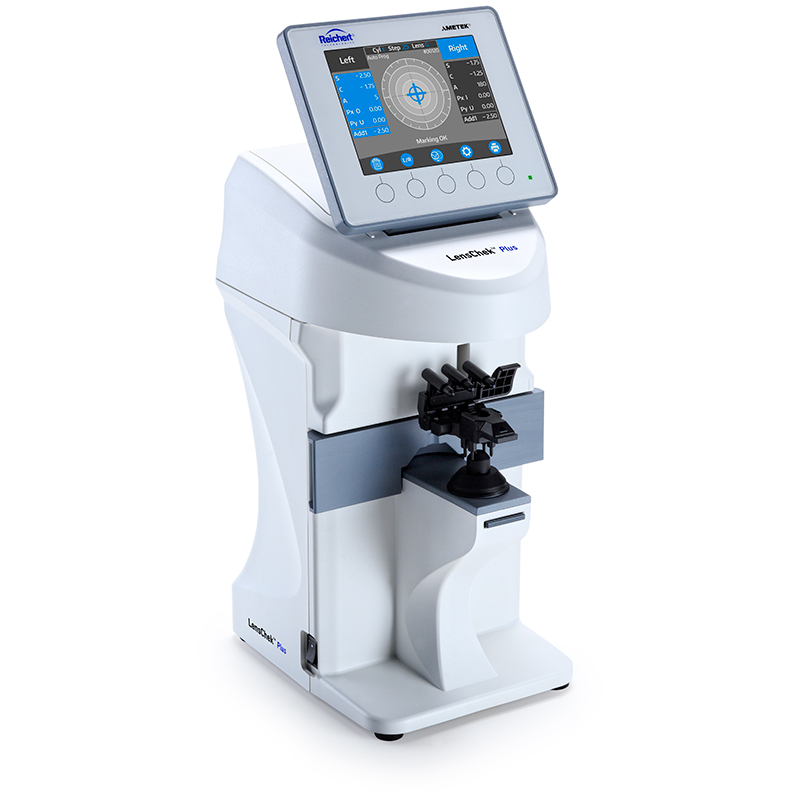

LensChek™ Pro - Digital Lensometer® with PD + UV
Details
The new, compact, modern design and intuitive user interface of the LensChek Pro Digital Lensometer offers the easiest lensmeter user experience available. For example, when the target is aligned with the correct optical center, readings can be automatically “locked-in” ensuring fast, repeatable, and reliable lens measurement. LensChek Pro additionally features UV transmittance and PD measurement. Combines technology, simplicity and value Compact, modern design Intuitive user interface Brilliant 5.7 inch color LCD display Utilizes green measurement light Automatically lock-in measurement when optical center is aligned Measures single vision, bi-focal/tri-focal, and progressive lenses Hard and soft contact lens measurement mode PD measurement UV transmittance Data output options: built-in printer and serial RS-232C port for connecting to EMR/EHR and other devices Built-in storage compartment for extra printer paper or accessories Measurement range: Sphere: -25 D to +25 D Cylinder: 0 D to ±10 D Axis: 0° to 180°
Tech Specs
LensChek™ Pro - Digital Lensometer® with PD + UV Specifications: Catalog Number: 15185 Refractive Measurement Range: Sphere: -25D to +25D (Step: 0.01D, 0.12D, 0.25D) Cylinder: 0D to ± 10D (Step: 0.01D, 0.12D, 0.25D) Axis angle: 1 to 180° (Step: 1°) Addition: 0D to 10D (Step: 0.01D, 0.12D, 0.25D) Prism: 0 to 10° (Step: 0.01D, 0.12D, 0.25D) UV Transmittance Measurement: 0 to 100% (Step: 1%) Pupilary Distance Measurement: 45mm to 85mm (Step: 0.5 mm) UV Transmittance Measuring Wavelength: 375 nm Lens Power Measuring Wavelength: 630 nm Measureable Lens: Unprocessed (Diameter: 100mm) and Framed Lens Single, Multifocal, Progressive lens Single Focus Hard and Soft Contact Lens (use Contact Lens Stand) Measurement Accuracy: Sphere: 0D to ± 10D = ±0.25D, else 0.50D Cylinder: ±0.25D Printer: Thermal line printer (Paper width: 58 mm) Port: Serial RS-232C port for connecting to EMR/EHR and other devices Internal Display: 145 mm (5.7 inches) color LCD monitor Size: Weight Unpacked: 4.7 Kg (10.35 lbs) Display Up: 46.7 cm (18.4 in) Display Down: 41.9 cm (16.5 in) Width: 18.4 cm (7.3 in) Depth: 22.9 cm (9.0 in) Color LCD Monitor: 12.1 x 8.9 cm (4.75 x 3.5 in.) Electrical: Input Power: 100 to 240V @ 50/60Hz, 60 VA Fuse: T2AL 250V, 5x20mm, RoHS Bluetooth Power Source: 5V DC ± 5% @ 200 mA (typical)
