Details

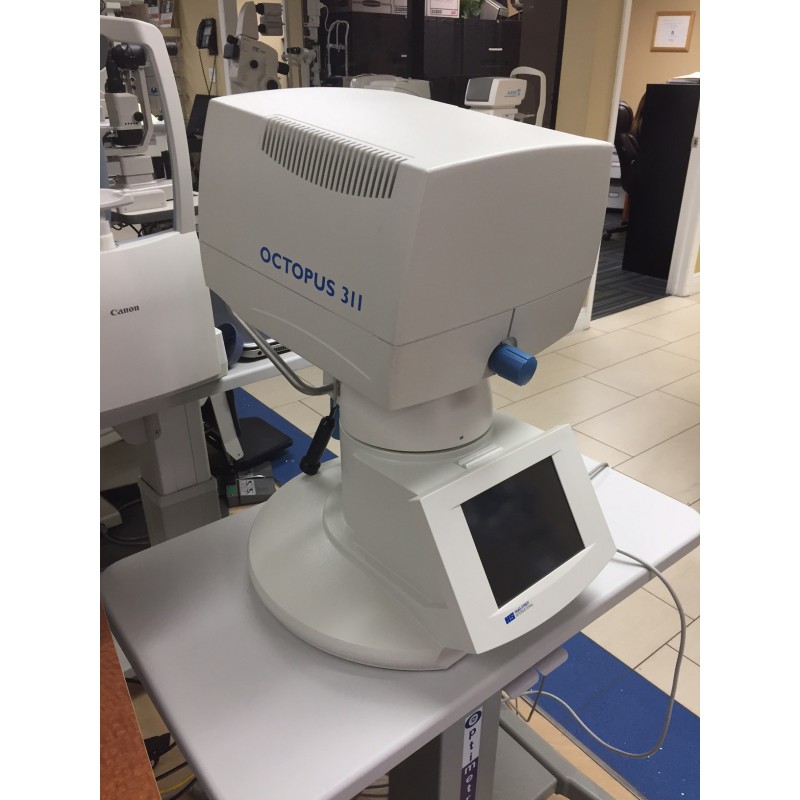

The Octopus 311 Perimeter design and access free rotating examination unit, access from all sides • Approval Worldwide • OPTICAL SYSTEM (SPECIAL/TIME, min) 30° direct projection • Design and access Free rotating examination unit, access from all sides • Operation (DOOR(S)) Color LCD input screen • Work log counter Ongoing counting of examinations • Dialog language All languages available in Windows® • Eye monitor Infrared sensitive eye camera and video display • Eye fixation control Electronic eye fixation control • Automatic fixation adjustment Perimeter automatically adjusts for fixation loss • Pupil size measurement Continuous average pupil size measurement • Examination programs Programs G1, 32, M2, ST and LVC • Test Strategies Normal 4-2-1dB, Low vision, Dynamic and 2LT (Qualitative 3-zone) strategy • Automatic procedures Automatic test settings available for all programs • Stimulus sizes Goldmann III and V • Stimulus Intensity 0-4'800asb • Background illumination 31.4 / 314asb • Printer output USB output for connection to standard inkjet printers • Print-out formats Selection of 8 print-out formats, including Two-on-One format • Data output to PC Data transfer in conjunction with PeriTrend (option) • SOFTWARE UPGRADES Exchange of software module or transfer of updates from PC by CD or downloading from Internet • User defined programs 5 custom tests and free selection of catch trials • Special Perimetry Blue-on-Yellow Perimetry • Network connection Integrated LAN adapter with Ethernet interface • REMOTE CONTROL (CATHETERS/PROBES) PC control of perimeter functions
