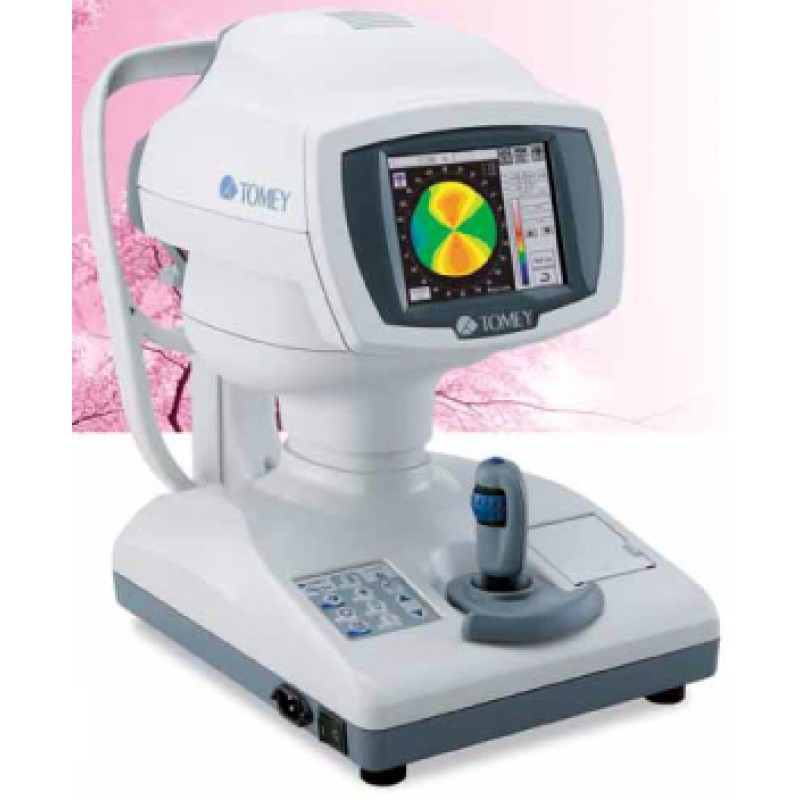

Tomey RT-7000 Autorefractor/Kerato/Topo

Tomey RT-7000 Autorefractor/Kerato/Topo

Brand:   Tomey
Condition:   New
The Tomey Refractometer Keratometer and Topographer only in 1 unit senior citizens and children can also get the inspection with out any trouble because they dont have to move the seat for three measurements. Switch from Ref-Kerato Mode to Corneal Topogr
Quantity:
Have a question? Feel free to Ask a question
Please Sign In To Inquire Price
If you just logged in, please refresh the page

Details

Tomey Autorefractor Ref-Topographer RT-7000 -Three Functions in One Instrument -Easy & Speedy Touch Screen Alignment -6.4 inches color TFT LCD -Dual CCD technology for Refractometry -IOL/ Cataract Mode -New incites for Keratometry KAI, KRI -Auto Alignment / Auto Shot of Topography Corneal Topography - Auto Alignment / Auto Shot Any one can easily capture measurement with Auto Alignment and Auto Shot. The Measurement variation is significantly reduced no matter what the skill level is of the operator. CL Fitting Simulation -A pseudo-fluorescent pattern of the contact lens selected from the built-in data base can be confirmed and the fitting can be stimulated before the patient wears the trial lens. Corneal Eccentricity Index -The index of CEI (Corneal Eccentricity Index) indicates the ratio of flattering in percentage from the central cornea to the periphery. Three Function in One Instrument - Refractometer Keratometer and Topographer only in 1 unit senior citizens and children can also get the inspection with out any trouble because they don’t have to move the seat for three measurements. Switch from Ref-Kerato Mode to Corneal Topography Mode with only ONE TOUCH. The light come appears with only one button from the measuring head and the Ref-Keratometer is transformed to the topographer. Refractometry - Dual CCD technology for Refractometry Two CCD cameras are used to capture images for observation and for measurement while providing highly accurate measurement data. Keratometory - New Indices for Keratometry The Corneal Irregular astigmatism display function is installed to expand the possibility of Keratometer. This is the new function to measure the level of corneal irregular astigmatism which was difficult in the past.

Tech Specs

MeasurmentRanges Refraction Measuremnt Sphere -25.00D to ±22.00DIVD=12.0mm Cylinder 0D to ± 10.00DIVD=12.0mm Axis 0 to 180 Corneal Curvature Measurement 5.00mm to 11.00mm Measurement Zone 3mm R:8.00mm Corneal Mapping Display Range 9 to 100 D -Normal Mode 1.0 to 8.0mm (R:8.00mm) -Special Mode 0.9 to 7.0 mm (R:8.00mm) Measurement Time REF 0.2 Seconds KRT 0.1 Seconds Minimum Pupil Diameter 2.2mm Minimum Measurment Step Refraction Measurement Sphere 0.01D Cylinder 0.01D Axis 1 Corneal Curvature Measurement 0.01mm PD (Pupil Distance) 50mm to 86mm Recording Built-In Thermal Printer Vertex Distance 0mm, 12.0mm, 13.5mm, 14.0mm, 15.5mm, 16.0mm Exterior Output (AN port / 4USB ports) Dimensions High 466mmm or 18 Inches Width 307mm or 12 Inches Depth 490mm or 19 Inches Weight Approx 20,000Kg / 44.4 Pounds Display 6.4 Inches color liquid crystal Power Supply Voltage AC 100 to 240V Frequency 50/60 Hz Consumption Power 120VA to 150VA Temperature +10C to + 40C Display 30% to 75%
