Details

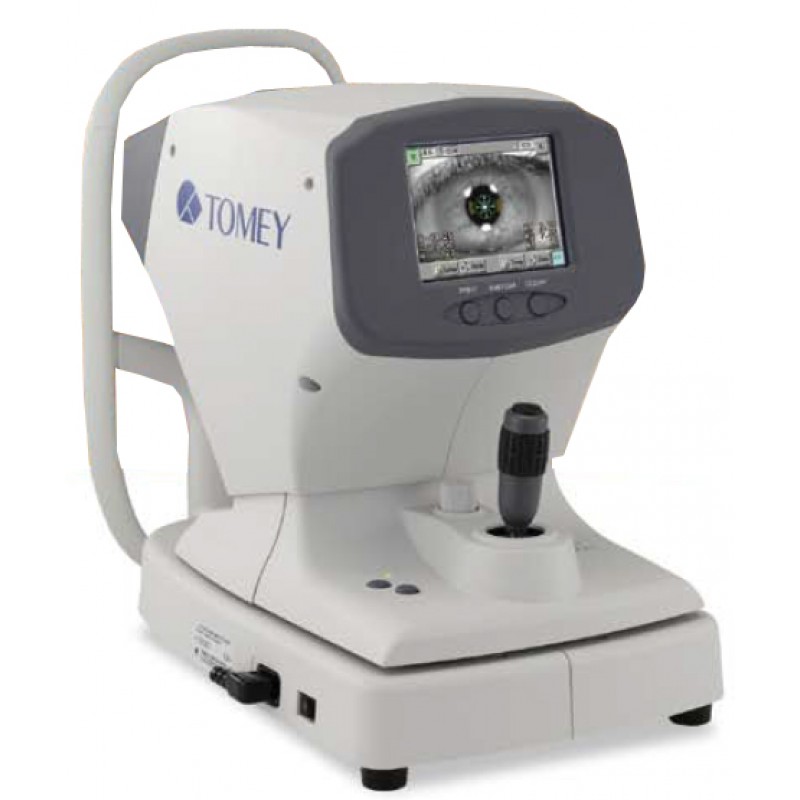

Refractometry Simple handling of the fine adjustment and measurement by yourself. Fogging is applied automatically for each measurement for more accurate results. Keratometry Short consecutive measurements and time provide reliable data. Measurements at φ3.0mm (R = 8.0mm) give you enough information for contact lens fitting. Diameter Measurement of Cornea and Pupil Easy measurement by moving the two cursors on the display to the boundaries of Cornea or Pupil. Language Selection RC-800 has a Multi-language function. You can select your required language from “English”, “Japanese”, “German”, “Chinese”, “Spanish”, “Spanish Latin America”, “Italian”, “Portuguese”, “French” and “Russian”. Measurement Ranges Refractometory Sphere: -25.00D to +22.00D (VD=12.0mm) Cylinder: 0D to ±10.00D (VD=12.0mm) Axis: 0° to 180° Minimum Pupil Dia: Ø2.0mm Measurement time: 0.2 second/single eye (data taking time) Keratometory Range: 5.00mm to 11.00mm Corneal Refraction: 30.68D to 67.50D (n=1.3375) Corneal Astigmatism: 0D to 10D (n=1.3375) Axis: 0° to 180° Measurement area: Ø3mm (at 8.00mm corneal curvature) Measurement time: 0.1 second/single eye (data taking time) PD Measurement range 50 to 86mm Corneal diameter measurement Measurement range:10.0 to 14.0mm Display unit:0.1mm Pupil diameter measurement Measurement range:1.0 to 10.0 mm Display unit:0.1mm Built-in Printer Thermal printer Data output type RS232C / USB-D Display 5.7 inch color liquid crystal display Dimensions and weight 297(W)x500(D)x448(H)mm Approx. 17kg Power Requirements AC 100V to 240V 50 / 60 Hz 80VA to 100VA
