Details

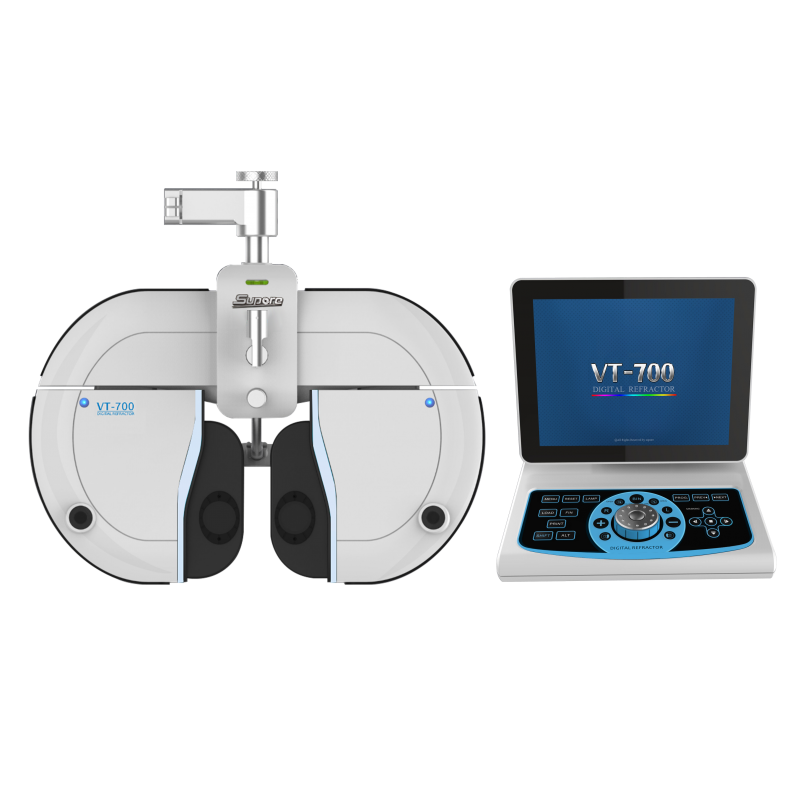

Supore Digital Phoropter System VT-700 Test Specification Sphere -29.00 - +26.75D (Step: 0.12D / 0.25D / 0.5D / 1D / 2D / 3D) Cylinder 0.00 - 8.75D (Step: 0.25D / 0.5D / 1D / 2D / 3D) Cylinder axis 0 - 180º (Step: 1 / 5 / 15 / 30 / 45) PD Far: 48 - 80mm Near: 45 - 75mm (Step: 0.5/1.0mm) Working distance 35 - 70 cm (Step 5 cm) Prims 0 - 20" (Step: 0.1" / 0.2" / 0.5" / 1" / 2") Jackson cross cylinder Jackson cross cylinder 0.25D Jakson cross cylinder 0.50D Dual cross Cylinder (Separation prism) Ophthalmoscope +1.5D, +2.0D (Measuring distance 67cm, 50cm) Size and weight Body of main engine 363(Width) x 83(Depth) x 299(Height)mm, 3.5 kg Keyboard 215(Width) x 230(Depth) x 226(Height)mm,1.5 kg Junction box 266(Width) x 72(Depth) x 240(Height)mm, 1.3 kg Voltage AC 100 - 240V, 50 / 60 Hz Power 90VA Auxiliary lens Pinhole lens o 1mm Maddox Right eye(horizon), Left eye(vertical) Red and green lens Right eye(red), Left eye(green) Polaroid Right eye(134º, 45º), Left eye(45º, 135º) Separation prism Right eye(6"BU), Left eye(10"BI) Solid suprachiasmatic cylinder Jacson cross cylinder -+ 0.50D, Axis fixation 90º Visual degree 32º
