Details

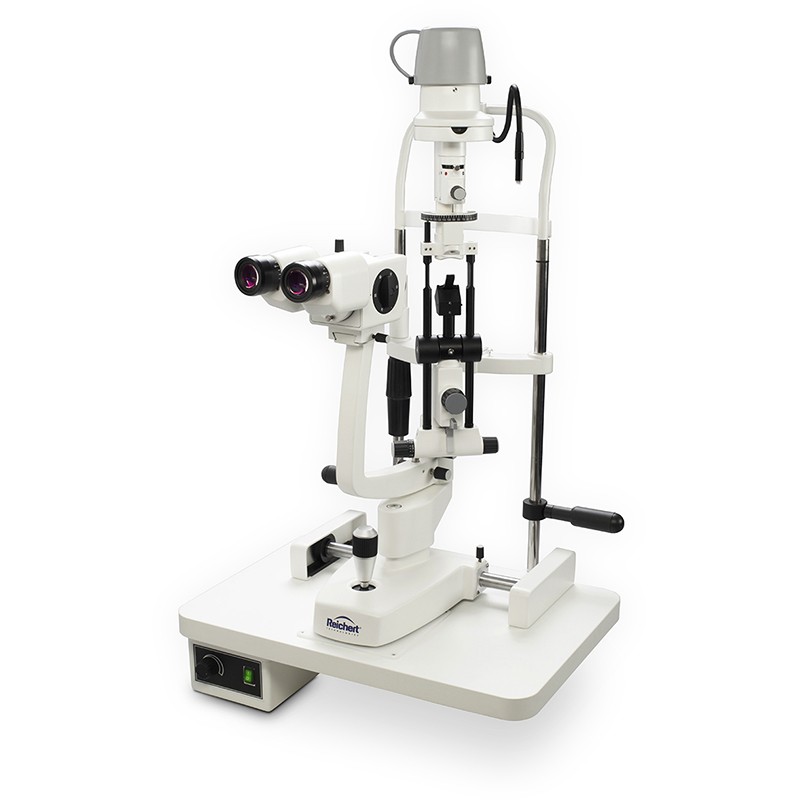

Traditional tower illumination design High efficiency multilayer optical coatings for enhanced light transmission Wide-field optics 5 step magnification 6.5X, 10X, 16X, 25X, 40X 12.5X magnification eyepieces Slit inclination up to 20 degrees Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Filters Halogen illumination Smooth base movement and slit elevation with X Y Z joystick Microscope Microscope Type: Galilean Magnification Change: 5 Step Drum Rotation Eyepiece: 12.5x Magnification Ratio: 6.5x, 10x, 16x, 25x, 40x Fields of View: 37, 24, 15, 9.5, 6 mm PD Range: 49 – 78 mm Diopter Adjustment: +/- 6 D Working Distance: Slit Lamp Slit Illumination: 6V 20W Halogen Slit Width: 0 – 12 mm Slit Length: 1.5 – 12.5 mm Slit Apertures: 0.3, 1, 3, 5, 9, 12 mm Slit Rotation: 0 – 180 Degrees Slit Inclination: -5, -10, -15, -20 Degrees Filters: Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Illuminance Range: 0 to >50000 lux Base Movement Ranges Longitudinal (In/Out): 110 mm (4.3 in.) Lateral (Left/Right): 110 mm (4.3 in.) Vertical (Up/Down): 30 mm (1.2 in.) Chinrest Fixation Lamp: White LED Vertical Movement: 70 mm (2.8 in.) Power Voltage: 100 – 240 VAC Power Input (max): 56 – 73 VA Frequency: 50/60 Hz Fuses Time-Lag: (1.6A, 250V), 5x20 mm Dimensions/Weight Height: 66.0 cm (26.0 in.) Width: 45.7 cm (18.0 in.) Depth: 34.3 cm (13.5 in.) Table Dimensions: 46.5 x 32 cm (18.3 x 12.6 in.) Weight, Unpacked: 17.8 kg (39.3 lbs.)
