Details

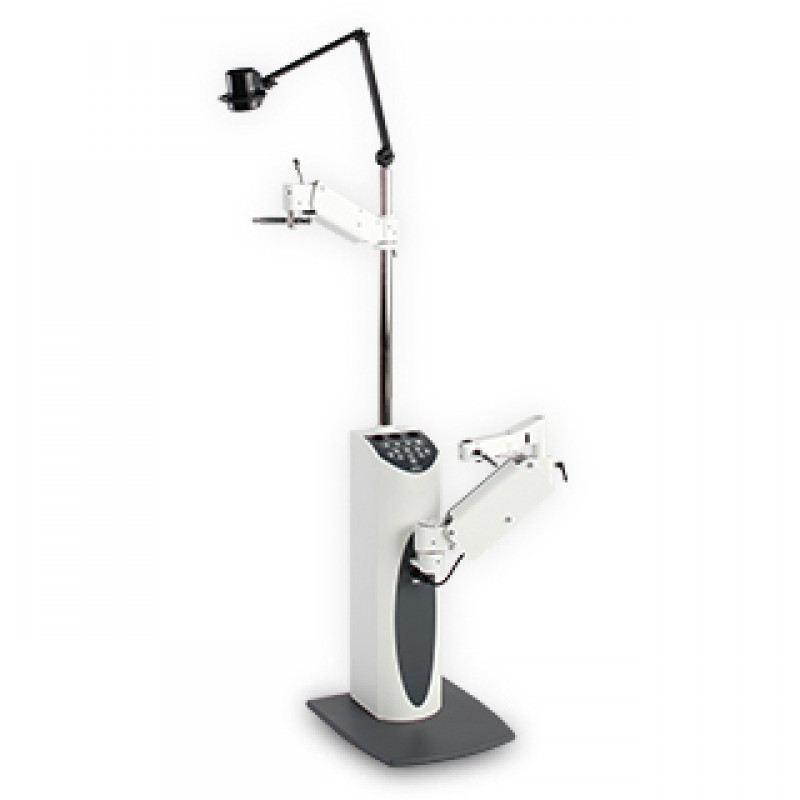

Endurance Instrument Stand The Phoroptor arm comes fully counterbalances for a Reichert Ultramatic RX Phoroptor and the lower instrument arm is counterbalanced for the Reichert XCEL 255 Slit Lamp. The built-in counterbalance adjustment mechanisms can be easily accessed in each arm. The heigh range on the lower arm accommodates wheelchairs and standard patient access. Controls on the stand console are logically arranged and easily accessible. Chair and Stand operations can be initiated with the touch of a button. Main On/Off Power Switch Chair elevation and control Power to the lower instrument arm, projector and three additional accessory instruments Overhead lamp power and brightness Three rechargeable instrument wells with charge indicators Corded (BIO) instrument power and voltage selector Weight: 240 lbs (109 kg) Height to top of pole: 68.5 in. (174 cm) Refractor Arm: Range in Vertical Motion: 12.5 in. (32 cm) Length fully extended: 26.25 in. (64 cm) Including Phoroptor pole mount Counterbalance weight limit: 20 lbs. (9kg) Lower Arm: Range in Vertical Motion: 24 in. to 37.5 in. (61 cm to 95 cm) Length fully extended: 35 in. (89 cm) Counterbalance weight limit: 60 lbs. (27 kg) Electric: 120V, 60Hz Corded Instrument Voltages: 6V, 7.5V, 12V, 12V Fixed Fuses: 6A Main
