Details

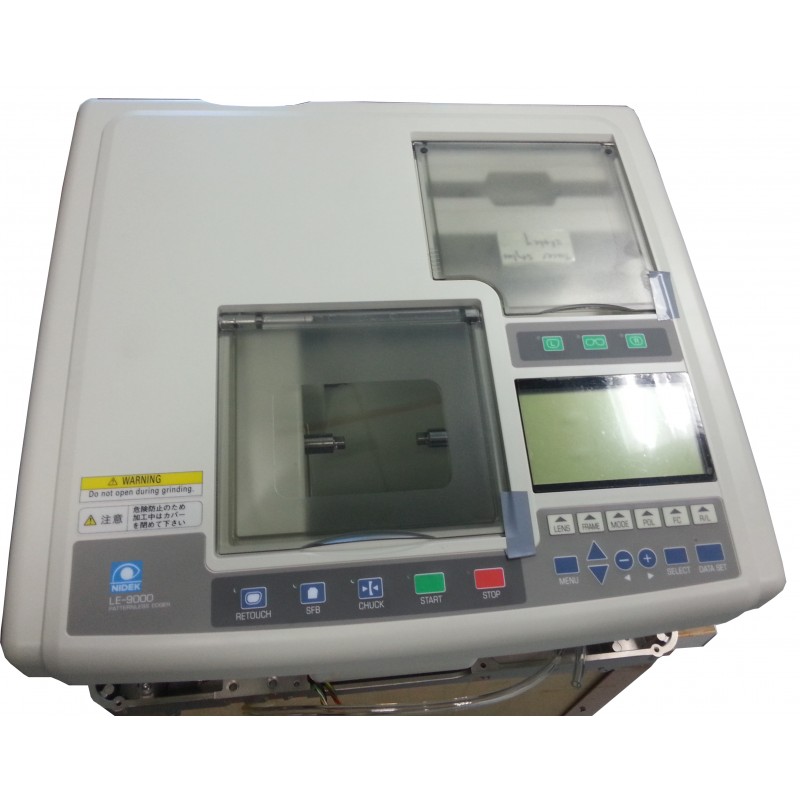

Reconditioned Nidek Le 9000SX Pattern Less Edger System‏ Automatic Chamfering & Grooving Nidek's newest SX series of patternless edgers provide automatic chamfering and grooving, with a new multi-disk arm that grooves and chamfers in one operation. The optimal chamfering amount can be set by selection of chamfering parameters. Grooving is automatically accomplished in the proper position. Position, depth and width of the groove can be manually selected on the simulation display. Wider Grinding Wheel The 20% wider, more durable grinding wheel has an improved carriage that facilitates grinding of even thicker lenses at greater speed. Frame Replacement Function Tracing of the new frame outline is displayed on top of the traced old lens. When PD and layout values are entered, displayed data (form) changes, and the optimal PD and layout value for edging can be automatically determined. Flexible and Versatile The Nidek LE-9000SX/LX series edgers can process any type of lens materials, including glass*, plastic, polycarbonate and acrylic lenses. Newly designed"High Index Plastic Mode"can be applied to high index plastic lenses for smoother processing, in accordance with lens hardness and viscosity. *Except model PLB, which is recommended only for use on plastic Built-in Tracer The Nidek LE-9000SX/LX series edgers incorporate a tracer into the main console and achieve the smallest footprint in the world. A shielded connection cable ensures safe and reliable data communication. With its operator-friendly design, frame setting position can be easily observed. High Speed, High Precision 3D Tracing The LE-9000SX/LX series edgers provide precise tracing in all three dimensions. Unlike die plates, the edger finishes even highly curved frames with greater accuracy. Also, the new design features high speed tracing, approximately 30% faster than our conventional edger. Fully Automatic Measurement of Patterns and Dummy Lenses The edger automatically measures frame, pattern and dummy lenses, and at completion of the operation the measuring pin returns to its housing. Dual Tracing System As both sides of lenses are traced with high accuracy, a perfect fit is possible even when there are subtle differences between right and left lenses. The frame PD is automatically measured, eliminating the need for manual measurement and input. New Low-Pressure,Active Control Stylus Accurate tracing is accomplished at low pressure, eliminating frame distortion and disengagement. Accuracy measured in microns Two-point and half-rim lenses can be polished very precisely with greatly reduced buffing time. LE-9000SX PLB provides easy and accurate bevel mirror polishing. *To ensure high performance of bevel mirror polishing, the PLB model is recommended for use only on plastic. Speed Up! The LE-9000 features high speed processing at every step of operation---frame tracing, lens measurement, calculation and edging. Operation time is reduced to 1/3 compared to that of our first edger model. High Quality Newly developed 3D tracing & lens measurement feature provides accurate frame and lens measurements, ultimately offering a perfect finish. Thirty-two thousand data points per processing round ensures a precise fit. Frame Memory One hundred tracing patterns can be stored in memory, and with optional barcode scanner up to 500 patterns can be stored. This improves efficiency, saves time and storage space.
