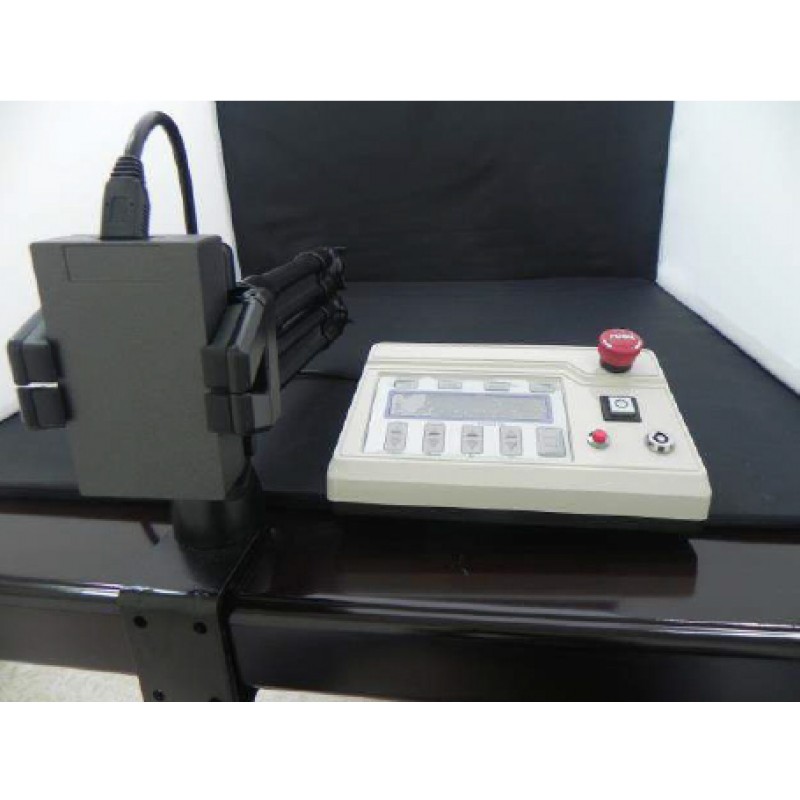

NanoSigma XL Portable Corneal Cross-Linking System Key Features and benefits 1. Adjustable intensity － From 3 to 30 mW/cm2 at working distance of 50 mm 2. Easy, Fast Installation 3. Continuously adjustable of Spot Size (3 ~ 9 mm) 4. Emergency button design, prevent unexpected damage 5. Small and not heavy light source part － Only 120 g 6. Total weight is 5 kg only including outer box － East to carry to anywhere 7. CE certificate Specification Wavelength range: 365 nm Illumination intensity: 3 ~ 30 mW/cm2 Maximum error ±10% Working distance: 50 mm Mode Type 4 PERSET Modes and USER DEFINED Mode Light emission: Continuous wave (CW) Spot sizes: 6 - 9 mm (4 sizes Adjustable) Timer: 1 Sec ~30 Min Operating Temperature 15° to 37° C (Ambient) Power source AC 100 to 240 V, 50 to 60 Hz, 0.15A SIZE: Control Panel H x W x D 133 x 189 x 58 (mm) LED UVA light H x W x D 60 x 37 x 100 (mm) Bracket Height x Arm 390 x 230 (mm) WEIGHT: Control Panel 430 g LED UVA light 120 g Bracket 800 g
