Details

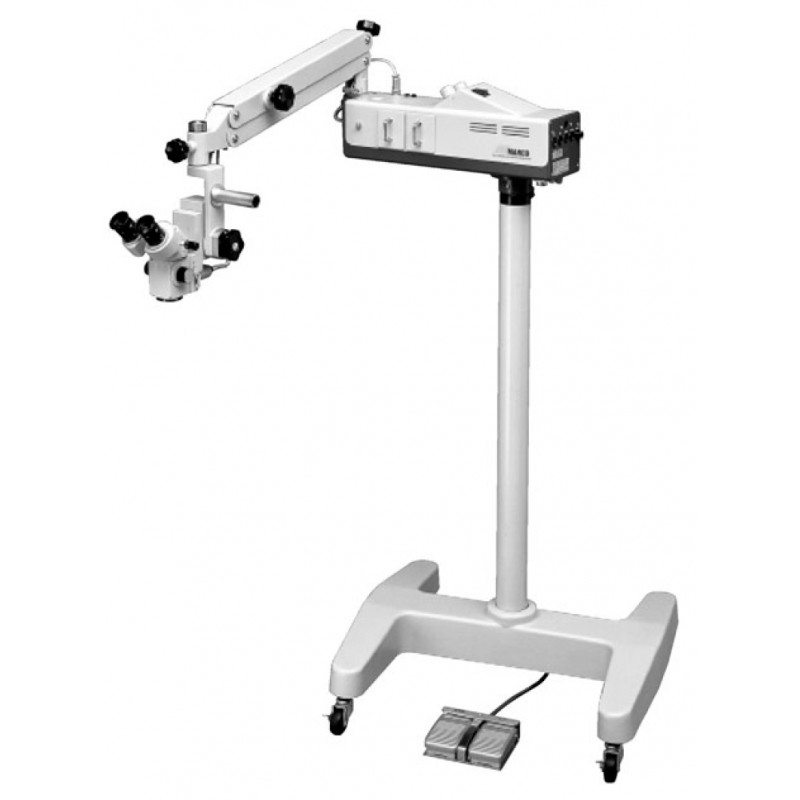

Surgiscope 3 Specifications Microscope Section Binocular Tube 45º inclined with converging optics Eyepieces 12.5x Magnification changes Built in manual 3-step changer Total Magnification 4.6x; 7.7x; 12.3x Field of view 43.5mm; 26mm; 16.3mm Objective F-175mm (for ophthalmology) F-200, 250, 300, 350mm (for general micro-surgical fields) Focusing speed Fine movement at 2.5mm/sec., stroke 36mm Working distance 169mm Interpupillary distance adjustment 47 - 90mm Diopter adjustment 0 - 8D Illumination system Type Coaxial illumination by optical light-guide system Light source 15V/150W halogen lamp Illumination control Continuous adjustment Field of illumination 45mm Filters Cobalt blue, red-free, heat-absorbing, UV retina shield Intensity of illumination 80,000 lux Stand section Type Floor stand; table, unit, or wall bracket Vertical range of counterbalanced arm 15.75" (400mm) General information Base size 23.6" x 22.0" (600mm x 560mm) Weight 132 lb (60kg) Height 59.84" (1520mm) Electrical power AC100, 115, 220, 240V, 50/60Hz Power consumption 220VA
