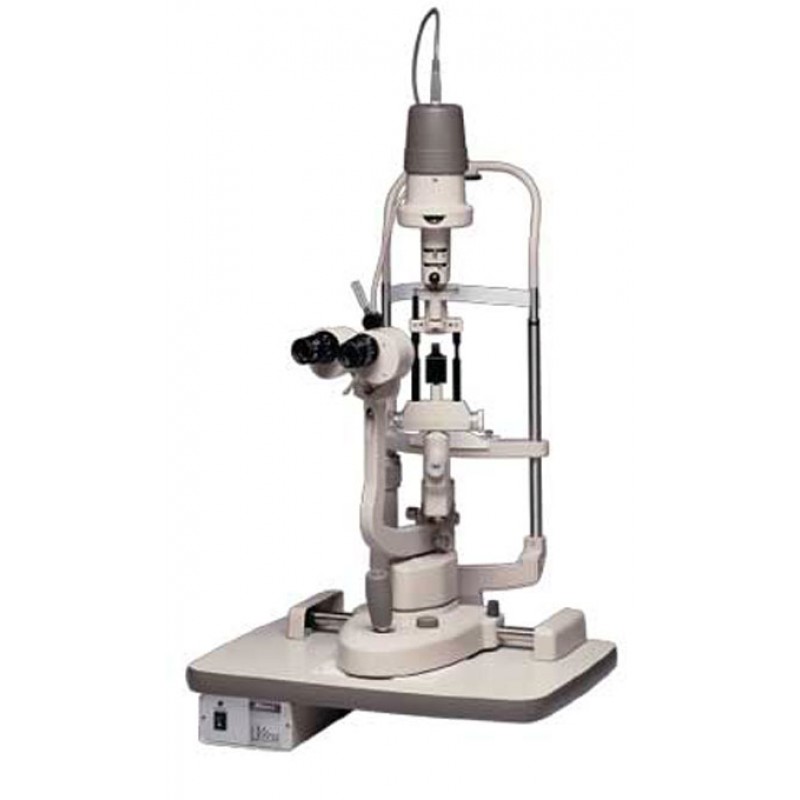

Marco 2B Ultra Slit Lamp - Combines remarkable ease of use and value with the same high optical qualities and precision construction found in other Ultra Series models. - Ideal for general examination procedures and contact-lens work. - Single-handed elevation joystick. - Halogen illumination standard. - Pencil-point fixation light. - Four built-in filters. - 0 to 10mm slit width. - Rheostat conveniently located next to the joystick. - Hruby lens kit and patient handrests optional. - Finds wide acceptance in satellite offices as well as in larger practices with multiple lanes of equipment. SPECIFICATIONS Microscope: Type Greenough converging-binocular microscope Magnification changing system Two position revolving objective Eyepieces 10x Total magnifications 10x, 16x Real fields of view (diameters) 18mm and 15mm Interpupillary adjustment 48mm - 80mm Slit Lamp: Slit projection 0.8x Slit width 0 - 10mm, continuously variable Slit length 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm Aperture diaphragms 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm Filters Heat absorbing, UV, red-free, & cobalt blue Cross-Slide Base: Longitudinal movement 90mm Lateral movement 110mm Vertical movement ± 15mm Horizontal fine movement ± 7.5mm Chinrest: Fixation lamp LED (red) Vertical movement 78mm1_800_755_5919 Power: Input voltage AC 110V, 120V, 220V, and 240V Maximum power consumption 40VA General: Weight 39.6 lbs. (18kg) Lamp 12V/30W halogen bulb Tabletop dimensions 21.5 in. x 13.5 in. (550mm x 350mm) Color/finish Misty Grey with durable Hammernet finish
