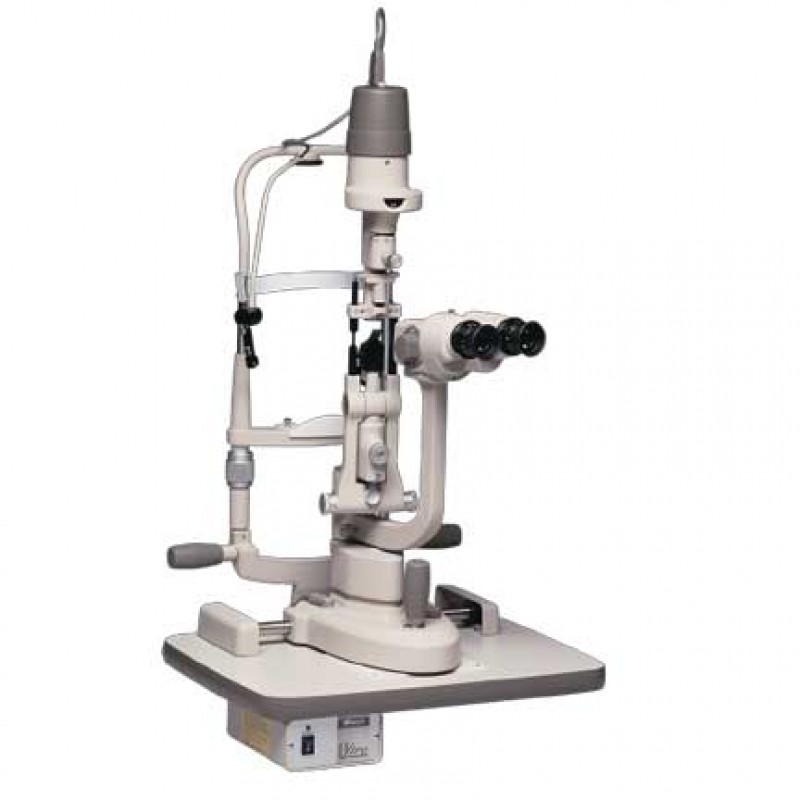

Marco G5 Ultra Slit Lamp (camera adaptable) * Most comfortable slit lamp on the market. * Six-degree converging binocular tubes with Galilean parallel magnification changer head. * Five-step magnification range from 6.3x to 40x with the twist of a single knob and no change of eyepiece. * Fingertip millimeter slit-width control provides highly precise adjustment. * Single-handed elevation system. * Easy-to-reach tilt mechanism for gonioscopy. * Dial-in, and continuously variable aperture setting from 10mm to 0.2mm. Ideal for measuring ocular structures to 0.1mm. * Focusing fixation light is adjustable to each patient. * Halogen illumination standard. * Five built-in filters (two cobalt). * Rheostat conveniently located next to joystick. * Patient handrests standard. * Tonometer mount and Hruby lens kit optional. * Superb depth of field is ideal for todays technically advanced imaging systems. An available beamsplitter featuring an "in-out" prism system allows full illumination to the practitioner during observation and maximum illumination to the imaging system when in position. * Dual port beamsplitter also allows an assistantscope to be attached. Specifications Microscope: Type Greenough converging-binocular microscope Magnification Changing System Two position revolving objective Eyepieces 10x Total Magnifications 10x, 16x Real Fields of View (diameters) 18mm and 15mm Interpupillary Adjustment 48mm - 80mm Slit Lamp: Slit Projection 0.8xL_atham_and_P_hillips Slit Width 0 - 10mm, continuously variable Slit Length 1 - 10mm, continuously variable Aperture Diaphragms 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm Filters Heat absorbing, UV, red-free, & cobalt blue Cross-Slide Base: Longitudinal Movement 90mm Lateral Movement 110mm Vertical Movement ± 15mm Horizontal Fine Movement ± 7.5mm Chinrest: Fixation Lamp LED (red) Vertical Movement 78mm Power: Input Voltage AC 110V, 120V, 220V, and 240V Maximum Power Consumption 40VA General: Weight 39.6 lbs. (18kg) Lamp 12V/30W Halogen bulb Tabletop Dimensions 21.5 in. x 13.5 in. (550mm x 350mm) Color/Finish Misty Grey with durable Hammernet finish
