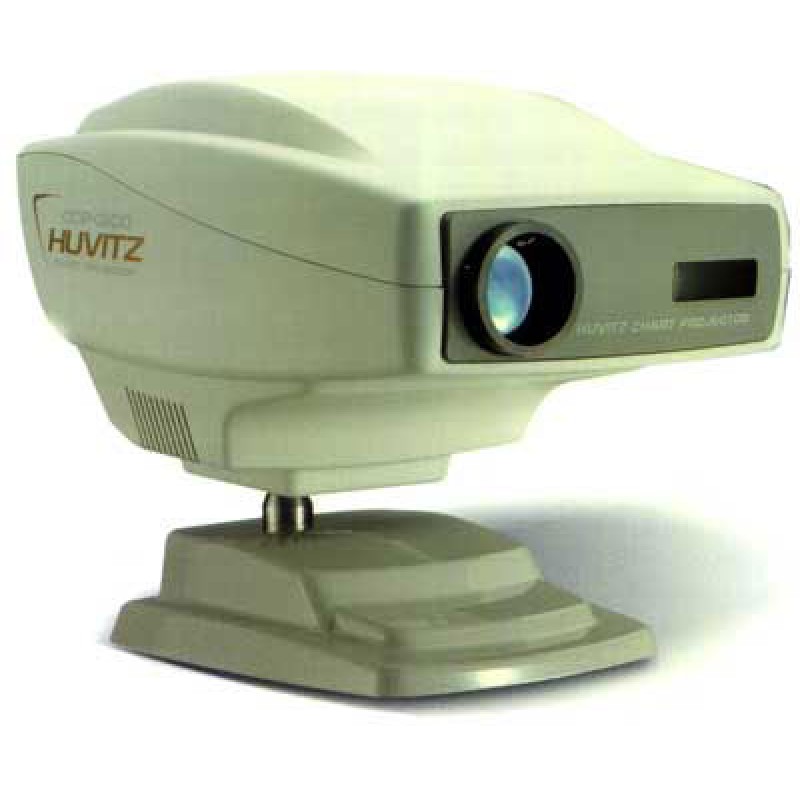

Huvitz CCP 3100 The CCP-3100 Auto Projector is designed as a stand alone automated instrument to add the convenience of delivery eye charts to your patients via a programmable remote hand held controller. isolate any letters on a vertical or horizontal line or individually. The CCP-3100 is also designed to integrate with Huvitz's DRS-3100 Digital Refraction System. High Quality Charts The CCP-3100's high resolution (50 lines/mm) provides clear and crisp graphics and a fast slide delivery speed, making it easy for operators to use and comfortable for patients. Wide Range of Features The CCP-3100 with 41 slides, including Red/Green and Polarizing filters, is the solution for Binocular Balance Test, Stereo Test, Aniseikonia Test & Fusion Test. Integration with CDR-3100 Digital Refractor Control the CCP-3100 from the remote control panel of the CDR-3100 Digital Refractor.
Specifications: Chart 41 chart 34 mask, Red/Green & Polarization Filters Projection Distance 2.5 ~8 m Chart Rotation Speed Average 0.15 sec Projection Magnification 30x at 5m Power Saving Automatic Switch off (10 min) Program 2 programs with a maximum of 30 charts each Tilt Angle 15° Power Supply 110V / 220V,50/60 Hz Power Consumption MAX 0.4A Lamp 12V / 30W (Halogen) Dimension 367 (W) x 219 (D) x 273 (H) mm Weight 6.6 kg
