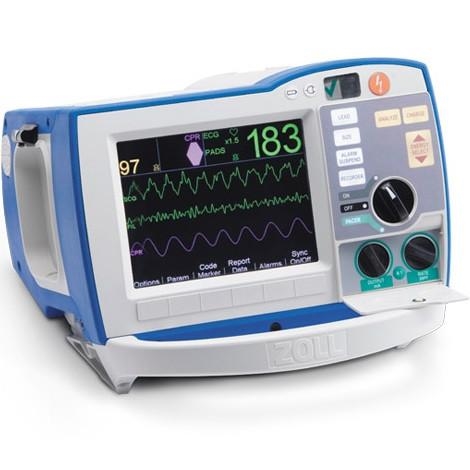

Zoll R Series ALS Monitor Defibrillator
Details
Zoll R Series ALS Monitor Defibrillator, the world's first Code-Ready® defibrillator, is an affordable, customizable, advanced resuscitation device recommended for use in hospitals. When seconds count in life-and-death situations, it is imperative to have a defibrillator that is always ready and simple to use. In addition to high-quality defibrillation, the R Series provides Real CPR Help® and See-Thru CPR to ensure that critical CPR is given correctly for optimal resuscitation efforts. Features and Benefits High-quality BLS defibrillator with automatic and manual modes Changes from an AED to a full manual defibrillator with the push of a button Designed for low acuity areas and users of all capabilities CPR assistance with Real CPR Help® for proper performance of CPR Always code-ready; performs daily self-checks of leads, electrodes, and inner workings Analyze mode for a "second opinion" Pediatric analysis algorithm for use in children Built-in Defib Mentor™ for on-the-spot refreshers and tutorials Rectilinear biphasic technology provides superior performance with less energy use Features built-in test port and compact flash card slot
Additional Information
Materials Included 1 ALS Monitor Defibrillator 1 Power Cord 1 User Manual 1 3-Lead ECG 1 Thermal Paper 1 Accessory Pouch 1 User Manual
Tech Specs
Technical Specifications Physical Specifications Dimensions: 8.2" x 10.5" x 12.5" Weight: 13.6 lbs Power Supply Type: AC and/or battery pack (sold separately) Charge Time: Less than 7 seconds Battery Indicator: Yes Paddle Type: External apex/sternum paddles; adult plates slide off to expose pediatric electrode surface (paddles sold separately) ECG Monitoring Patient Connection: 3-lead ECG cable, 5-lead ECG cable, paddles, or hands-free electrodes; selectable by front panel switch. Input Protection: Fully defibrillator protected. Circuits designed to prevent distortion of ECG signal by pacer pulse. Implanted Pacemaker Spike Display: Circuits designed to detect most implanted pacemaker spikes and display a marker on the ECG trace. Bandwidth: 0.5 to 21 Hz (-3dB) standard; 0.05 to 150 Hz diagnostic with configurable options of 0.5 Hz to 40 Hz or 1 Hz to 21 Hz. Lead Selection: I, II, III aVR, aVL, aVF, V, P1, P2, P3 with OneStep Pacing electrode. ECG Size: 0.5, 1.0, 1.5, 2.0 or 3.0 cm/mV display on monitor. Heart Rate Display: 0 to 300 bpm ±5%. Heart Rate Alarm: User selectable for tachycardia at 60 to 280 bpm; for bradycardia at 20 to 100 bpm. On/Off status displayed on the screen. Environmental Specifications Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to 60°C Humidity: 5% - 95% relative humidity Operating Pressure: 594 to 1060 millibars Protection Particle/Water Ingress: IEC 529, IP22 Shock: IEC 68-2-27, 50 g 6mS half-sine Electromagnetic Compatibility: CISPR 11 Class B Radiated and Conducted Emissions Electromagnetic Immunity: AAMI DF80, EN 61000-4-3 to 10 V/m Electrostatic Discharge: AAMI DF80, EN 61000-4-2 Susceptibility: EN 61000-4-4, 61000- 4-5, 61000-4-6 Patient Safety Measures: All patient connections are electrically isolated
Shipping Information
Please Inquire
Warranty & Returns
5-Year Warranty
