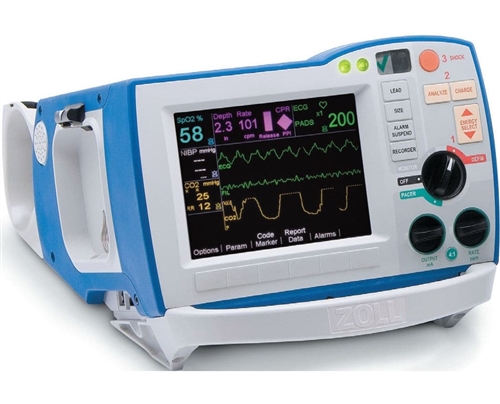

Zoll R Series ALS Defibrillator w/ NIBP, SpO2, Pacing, & EtCO2
Details
Zoll R Series ALS Monitor Defibrillator, the world's first Code-Ready® defibrillator, is an affordable, customizable, advanced resuscitation device recommended for use in hospitals. When seconds count in life-and-death situations, it is imperative to have a defibrillator that is always ready and simple to use. In addition to high-quality defibrillation, the R Series provides Real CPR Help® and See-Thru CPR to ensure that critical CPR is given correctly for optimal resuscitation efforts. Features and Benefits High-quality BLS defibrillator with automatic and manual modes Changes from an AED to a full manual defibrillator with the push of a button Designed for low acuity areas and users of all capabilities CPR assistance with Real CPR Help® for proper performance of CPR Always code-ready; performs daily self-checks of leads, electrodes, and inner workings Analyze mode for a "second opinion" Pediatric analysis algorithm for use in children Built-in Defib Mentor™ for on-the-spot refreshers and tutorials Rectilinear biphasic technology provides superior performance with less energy use Features built-in test port and compact flash card slot Included NIBP with SunTech Advantage R-Wave motion-tolerant technology, cuff and air hose Included Masimo SET pulse oximetry with reusable sensor and cable Included end-tidal CO2 (capnography) with CAPNOSTAT® 5 Mainstream CO2 Sensor OneStep™ pacing technology combines pacing/defibrillation and ECG electrodes in one pad
Additional Information
Materials Included 1 ALS Monitor Defibrillator 1 Power Cord 1 3-Lead ECG 1 Thermal Paper 1 NIBP Adult Blood Pressure Cuff 1 Blood Pressure Hose 1 Adult Reusable Sensor 1 Sensor Cable 1 CAPNOSTAT 5 Mainstream CO2 Sensor 1 One Step Pacing 1 Pair of OneStep™ Pacing Pad Electrode 1 OneStep™ Pacing Cable 1 OneStep™ Cable Manager 1 OneStep™ 3-Lead ECG 1 Accessory Pouch 1 User Manual
Tech Specs
Technical Specifications Physical Specifications Dimensions: 8.2" x 10.5" x 12.5" Weight: 13.6 lbs Power Supply Type: AC and/or battery pack (sold separately) Charge Time: Less than 7 seconds Battery Indicator: Yes Paddle Type: External apex/sternum paddles; adult plates slide off to expose pediatric electrode surface (paddles sold separately) Defibrillator Waveform: Rectilinear biphasic Patient Impedance Range: 15-300 ohms Self-Test Checks: Yes, over 40 parameter automatically daily Energy Selections: 1 to 10, 15, 20, 30, 50, 75, 100, 120, 150 and 200 joules selected using controls on front of the defibrillator or sternum paddles When using appropriate pediatric resuscitation electrodes, the 75 joule setting is replaced by 70 and 85 joule settings CPR Assistance: Yes; Real CPR Help and See-Thru CPR NIBP Patient Population: Adult, Pediatric. Method: Oscillometric. Control: Automatic and manual measurement. SpO2 Technology: Masimo SET Technology Saturation Range: 1-100% (%SpO2) with a resolution of 1%. Pulse Rate Range: 25-240 ppm with a resolution of 1 ppm. Saturation Accuracy: Non-motion conditions ±2% for adults/pediatrics; ±3% for neonates. During motion ±3% for all patients. Pulse Rate Accuracy: Non-motion conditions ±3 ppm. During motion ±5 ppm. Mainstream CO2 Capnostat 5 Sensor Principle of Operation: Nondispersive infrared (NDIR) single-beam optics, dual wavelength, no moving parts Warm-Up Time: Full specifications within 2 minutes at an ambient temperature of 25ºC. Capnogram in 20 seconds Environmental: Operating temperature: 0°C to 40°C, Storage and Shipping Temperature: -40°C to 70°C ECG Monitoring Patient Connection: 3-lead ECG cable, 5-lead ECG cable, paddles, or hands-free electrodes; selectable by front panel switch. Input Protection: Fully defibrillator protected. Circuits designed to prevent distortion of ECG signal by pacer pulse. Implanted Pacemaker Spike Display: Circuits designed to detect most implanted pacemaker spikes and display a marker on the ECG trace. Bandwidth: 0.5 to 21 Hz (-3dB) standard; 0.05 to 150 Hz diagnostic with configurable options of 0.5 Hz to 40 Hz or 1 Hz to 21 Hz. Lead Selection: I, II, III aVR, aVL, aVF, V, P1, P2, P3 with OneStep Pacing electrode. ECG Size: 0.5, 1.0, 1.5, 2.0 or 3.0 cm/mV display on monitor. Heart Rate Display: 0 to 300 bpm ±5%. Heart Rate Alarm: User selectable for tachycardia at 60 to 280 bpm; for bradycardia at 20 to 100 bpm. On/Off status displayed on the screen. External Pacing: OneStep Pacing: Eliminates the need to connect separate ECG leads when used in conjunction with OneStep Pacing and OneStep Complete electrodes. Environmental Specifications Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to 60°C Humidity: 5% - 95% relative humidity Operating Pressure: 594 to 1060 millibars Protection Particle/Water Ingress: IEC 529, IP22 Shock: IEC 68-2-27, 50 g 6mS half-sine Electromagnetic Compatibility: CISPR 11 Class B Radiated and Conducted Emissions Electromagnetic Immunity: AAMI DF80, EN 61000-4-3 to 10 V/m Electrostatic Discharge: AAMI DF80, EN 61000-4-2 Susceptibility: EN 61000-4-4, 61000- 4-5, 61000-4-6 Patient Safety Measures: All patient connections are electrically isolated
Shipping Information
Please Inquire
Warranty & Returns
5-Year Warranty
