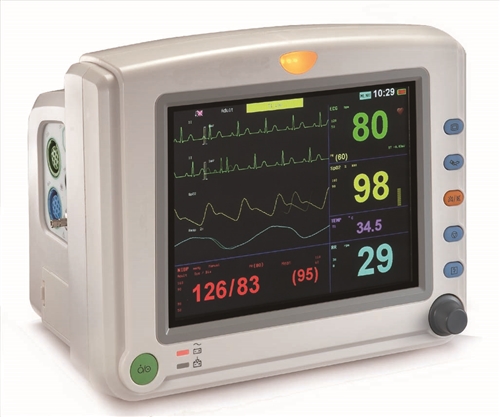

VI-8080P 8” Multi-parameter Patient Monitor
Details
Designed with emergency and operating room medical responders in mind, the VI-8080P patient monitor provides the efficient and fast-acting response needed for medical emergencies. Minimum ECG waveform and HR distortions during electrosurgical cutting and ablation, and total protection from electrosurgical interference prevent technical interference. Features and Benefits 8” LCD high resolution display Resistance to high electromagnetic power and is protected against defibrillation effects Large font display for distant visibility User friendly operating user interface with feature rich popup menus, dialogue boxes and rotary mouse. Digital SpO2 technology offers anti-motion and anti-low perfusion functions Unique one-screen all-lead ECG display, which can facilitate the diagnosis and analysis of cardiac disease. Audio and visual comprehensive alarm with configurable vital sign limit settings. 168 hours tabular and graphic trends & data storage Capable of printing vital signs data, EKG charts, waveforms with optional built-in thermal recorder. EtCO2 socket made ready. EtCO2 measurement is a plug-n-play with optional Respironics sidestream/mainstream CO2 sensor module. Drug concentration calculation, ST-segment detection, pace-maker analysis and arrhythmia analysis. Optional printing function for data, waveforms, trend tables and trend graphs. Optional CO2 detection function. Standard Components Standard ECG HR Respiration (Dual Mode w/ T-Resp) SpO2 (Pulse Reading & PLETH Waveform) NIBP 2-Ch Temperature (T1, T2) Basic Aarrhythmia Built-in rechargeable battery
Additional Information
Materials Included (1) 3-lead (or 5-lead) EKG cable (6 Pin) (1) Pack of electrodes (10pcs) (1) Blood pressure cuff (Adult 25-35 cm) (1) Blood pressure extension hose (10’) (1) Skin temperature sensor (1) Adult SpO2 finger sensor (1) Grounding Cable with Clamp (1)Power supply cable (125V 10A) (1) User’s operation manual Built-in thermal printer w/ (1) roll of paper (Optional)
Tech Specs
Technical Specifications ECG ECG Input: 3- or 5-lead, 12-lead EKG input (option) ECG Lead: I, II, III, aVR, aVL, aVF, V, V1-V6 (option) Gain Choice: AUTO, 0.25x, 0.5x, 1.0x, 2.0x, 4.0x Scanning Speed (mm/sec): 12.5mm/s, 25mm/s, 50mm/s Heart Rate Range: 3- or 5-lead EKG module – 10-350 bpm 12-lead ECG module – 25-254bpm Frequency Response: 3- or 5-lead EKG module – MON 0.5-40Hz, OPS 1-25Hz 12-lead EKG module – MON 0.5-25Hz, OPS 1-15Hz Heart Rate Accuracy: ±1% NIBP Measurement Method: Automatic Oscillometry Patient Types: Adults/Pediatrics/Neonate Measurement Parameters: Systolic, Mean, Diastolic Measurement Range: 10-270mmHg Units of Measurement: mmHg/Kpa Accuracy: Static - ±2% or ±3 mmHg, whichever is greater Clinical - ±5 mmHg average error, 8 mmHg standard deviation Pulse Rate/SpO2 Display: Digital and PLETH waveform Measurement Range: 0-100% Resolution: 1% Pulse Rate Range: 25-250BPM Accuracy: ±1% Resolution: 1BPM Temperature Measurement range: 25.0–45.0°C Accuracy: ±0.1°C Unit: Celsius (°C), Fahrenheit (ºF) Respiration Measurement Method: Impedance variation between RA-LL (R-F) Measurement Range: 0-120BPM Accuracy: ±1BPM Resolution: 1RPM CO2 (Optional) Measurement Type: Sidestream/Mainstream Measurement Range: 0%-10.0% Accuracy: ±2mmHg Power Requirements 100-250VAC, 50/60 Hz Standard Configuration EKG/Heart Rate/Respiration (3-lead or 5-lead), NIBP, SpO2/Pulse Rate, Temperature, EtCO2 sensor socket ready, Lithium Battery. Optional Configuration Built-in thermal recorder, EtCO2 module (Respirnoics EtCO2 LoFlo Sidestream or Capnostat 5 Mainstream), 2-channel IBP, Nellcor SpO2, 12-lead EKG
Shipping Information
Please Inquire
Warranty & Returns
Warranty Information 2 year warranty.
