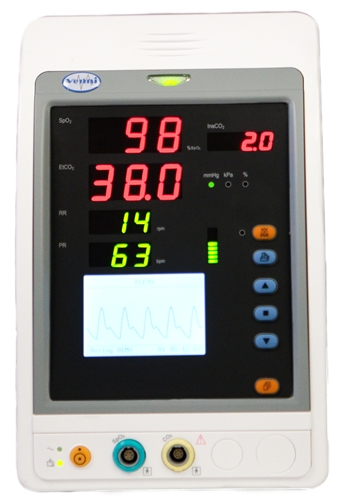

Venni VI-3510P Multi-Parameter Monitor
Details
VI-3510P vital signs monitor provides essential measurement parameters such as SpO2 and CO2, and offer high cost-performance ratio to give care teams throughout the hospital more of the information they need right at the patient’s side, such as ambulance, doctors’ office, out-patient department, and post-operative. Features and Benefits Compact 3.5 inch fine resolution color display. Capable of measuring SpO2, EtCO2 (End-tidal Carbon Dioxide), InsCO2 (Inspired Carbon Dioxide) and RR (Respiration Rate) EtCO2 and SpO2 trend graph display for the last 12, 24, or 96 hours. Advanced SpO2 measuring technology ensures sensitive and accurate SpO2, PR and Perfusion Index (PI) measurement Accurate SpO2 measurement in low perfusion situation. Audio and visual comprehensive alarm with 3 levels of alarm events. EtCO2, InsCO2, RR, SpO2 and PR(Pulse Rate) are displayed by big, bright numerical LEDs. CO2 waveform, SpO2 plethysmogram and system parameters are displayed on dot matrix LCD screen. Built-in rechargeable battery. Built-in thermal printer capable of printing out waveforms and text information. Optional mounting bracket can connect monitor to IV pole. Standard Components SpO2 CO2 Socket Ready Built-in Thermal Printer
Additional Information
Tech Specs
Technical Specifications CO2 Monitoring Technology: Infrared absorption method Mode of Sampling: Mainstream Measuring parameters: Respiration Rate, EtCO2 and InsCO2 Typical measurement range: EtCO2: 0~150mmHg InsCO2: 3~50mmHg Respiration Rate: 0~150bpm (Mainstream) CO2 Accuracy: 0~40mmHg ±2mmHg 41~70mmHg ±5% of reading 71~100mmHg ±8% of reading 101~150mmHg ±10% of reading CO2 Resolution: 0.1mmHg (0~69mmHg);0.25mmHg (70~150mmHg) SPO2 Monitoring SpO2 measurement range: 35%~99% SpO2 measurement accuracy: 75% - 99% ±2% 50% - 74% ±3% Low perfusion performance: 0.4%~5% Pulse rate measurement range: 30bpm~250bpm Pulse rate measurement accuracy: ±2bpm or 2% whichever is greater Printer Type: Built-in thermal printer Recording speed: 25mm/s Power Supply Power supply: 100~250VAC, 50/60 Hz Internal power supply: 12VDC (rechargeable) Battery specification: 12V 2.3AH (sealed lead-acid battery) Product Specifications Unit Weight: 5 lbs. Documentation Mainstream vs. Sidestream Capnography
Shipping Information
Please Inquire
Warranty & Returns
Warranty Information 2 year warranty.
