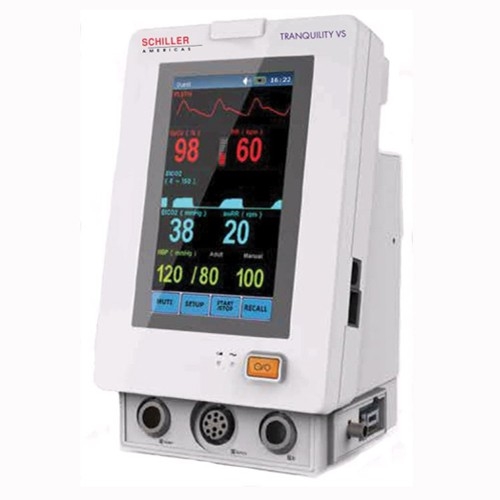

Schiller Tranquility VS Vital Signs Monitor w/ SpO2, NIBP and Temperature
Details
The Schiller Tranquility Vital Signs Patient Monitor offers Patient Monitoring with a simple interface, in a lightweight, portable, battery-powered package. Features and Benefits Weighing in at less than 3 Lbs. Well suited for any patient care area by offering a multitude of vital sign combinations. Well suited for both bed side and mobile spot check use. Simplifies clinician use by incorporating a touch screen with a simple user interface making the Tranquility VS intuitive for any user. Great for neonatal, pediatric and adult patients. Included SpO2, NIBP and Covidien Filac 2000 Thermometer
Additional Information
Materials Included Tranquility VS Monitor 1 SpO2 Sensor Cable 1 SpO2 Adult Reusable Finger Sensor 1 Adult Blood Pressure Cuff 1 Covidien Filac 2000 Thermometer 20 Probe Covers 1 Lithium Ion Battery 1 Power Cord User Manual
Tech Specs
Technical Specifications Physical Dimensions & Weight Base Unit Height: 8" Width: 4.5" Depth: 4" Weight: 2.5 lbs Performance Specifications Display: 5" (Diagonal) Color TFT Resolution: 800 x 3 (RGB) x 480 Indicator: Alarm Indicator Power Indicator Pulse beep and alarm sound Trend time: From 1 to 72 hours NIBP Measuring Technology: Automatic oscillating measurement Cuff Inflating: < 30s (0 ~ 300 mmH, standard adult cuff) Measuring Period: AVE < 40s Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 2 min ~ 4 hrs Pulse Rate Range: 30 bpm ~ 250 bpm Measuring Range: Adult/Pediatric Mode SYS: 40 ~ 250 (mmHg) DIA: 15 ~ 200 (mmHg) Neonatal Mode SYS: 40 ~ 135 (mmHg) DIA: 15 ~ 100 (mmHg) Resolution: 1mmHg Pressure Accuracy: Maximum Mean error: ± 5mmHg Maximum Standard Deviation: 8mmHg Overpressure Protection: Adult Mode: 280 (mmHg) Neonatal Mode: 150 (mmHg) Alarm Limit: SYS: 50 ~ 240 mmHg DIA: 15 ~ 180 mmHg Standards: Meets performance standards of ANSI/AAMI SP10:2002 SpO2: ASpO2: Anti-motion SpO2 SpO2 % Range: 0~100% SpO2 Accuracy: ±2% (70 ~ 100%,non-motion) ±3% (70 ~ 100%, motion) Pulse Rate Range: 30-250 bpm Pulse Rate Accuracy: ±2 bpm (non-motion) ±3 bpm (motion) Alarm Upper-Lower Limit: Upper Limit: 70 ~ 100% Lower Limit: 70 ~ 100% SpO2 Probe: Red Light LED Wavelength: 660nm ± 5nm Infrared Light LED Wavelength: 940nm ±10nm Standards: Meets performance standards of EN ISO 9919:2005 Rapid Temperature: Temperature Measurement Range: 30°C to 43°C (86°F to 109°F) Measurement Times (After Insertion into Measurement Site) 3-5 seconds (Non-Fever Temps) 8-10 Seconds (Fever Temps) Oral Standard Mode: 6-10 Seconds Rectal Mode: 10-14 seconds Direct Mode (All Sites): 60-120 seconds Pulse Timer: 60 Second count with a “beep” at 15 seconds 2 “beeps” at 30 seconds 1 “beep” at 45 seconds 2 “beeps” at 60 seconds Patient Accuracy: A Standard Prediction Mode reading and a Direct Mode reading will differ by less than ±0.2°C (±0.4°F) on 98% of tested patients Batteries: Four “AA” Batteries Required Standard IEC package size. Alkaline --1.5 Volt Approx. 6000 temperature readings Standards: Meets performance standards of EN 12470-3:2000, ASTM E1112:2006 Networking Wired Networking Industry standard: 802.11 b/g wired network Frequency Range: 2.412 ~ 2.484 GHz Connected bedside number: Up to 16 bedside monitors Wireless Networking Up to 100 m indoors Industry standard 802.11 b/g wireless Supports TCP/IP and UDP/IP Protocols Power Source: External AC power or internal battery AC Power: 100 ~ 240VAC, 50/60Hz, 150VA Battery: Built-in and lithium Ion rechargeable, 12.6V/5Ah Charge Time: 8 Hours Operating Time: 3 Hours Environmental Specifications Temperature: Operating: 5 ~ 40 °C Storage: -10 ~ 45 °C Humidity Range Operating: : ≤80 % Storage: ≤80 % Fuse: 3.15A/250V LCD Specifications Display Type: TFT Color LCD Size (Diagonal): 5" Active Area: Width: 152.4 mm Height: 91.44 Color Arrangement: RGB-Stripe Dot Pitch Width: 0.0635 Height: 0.1905 Display Mode: Normally White, Transmissive Interface: Digital (TTL) Surface Treatment: Anti-Glare Touchscreen Specifications Type: Four Wire Analog Resistive Touch Panel Input Mode: Stylus Pen or Finger Connector: FPC Insulation Resistance: 25MΩ Voltage: 7VDC Chattering: 10 ms Transparency: 80% Surface Hardness: 3H Durability-Surfacing Scratching: Write 100,000 Active Force: 80 gf Knock Test: 1,000,000 times
Shipping Information
Please Inquire
Warranty & Returns
Warranty Information 18-Month Warranty
