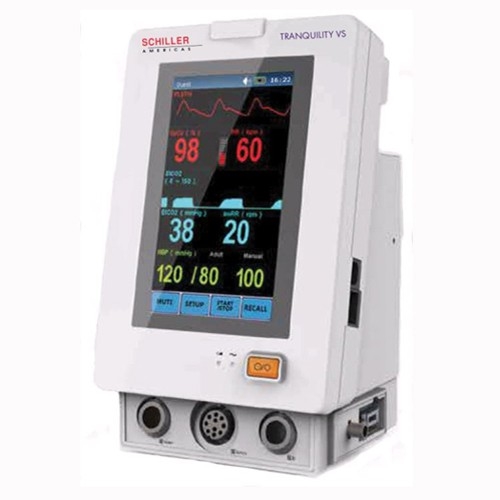

Schiller Tranquility VS Vital Signs Monitor w/ CO2
Details
The Schiller Tranquility Vital Signs Patient Monitor offers Patient Monitoring with a simple interface, in a lightweight, portable, battery-powered package. Features and Benefits Weighing in at less than 3 Lbs. Well suited for any patient care area by offering a multitude of vital sign combinations. Well suited for both bed side and mobile spot check use. Simplifies clinician use by incorporating a touch screen with a simple user interface making the Tranquility VS intuitive for any user. Great for neonatal, pediatric and adult patients. Included CO2 only. Note: The NIBP and SpO2 parameters are available; accessories are sold separately.
Additional Information
Materials Included Tranquility VS Monitor 1 Nasal Tube 1 Elbow Adaptor 1 Nasal Cannula 1 Sample Line 1 Lithium Ion Battery 1 Power Cord User Manual
Tech Specs
Technical Specifications Physical Dimensions & Weight Base Unit Height: 8" Width: 4.5" Depth: 4" Weight: 2.5 lbs Performance Specifications Display: 5" (Diagonal) Color TFT Resolution: 800 x 3 (RGB) x 480 Indicator: Alarm Indicator Power Indicator Pulse beep and alarm sound Trend time: From 1 to 72 hours NIBP (Optional) Measuring Technology: Automatic oscillating measurement Cuff Inflating: < 30s (0 ~ 300 mmH, standard adult cuff) Measuring Period: AVE < 40s Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 2 min ~ 4 hrs Pulse Rate Range: 30 bpm ~ 250 bpm Measuring Range: Adult/Pediatric Mode SYS: 40 ~ 250 (mmHg) DIA: 15 ~ 200 (mmHg) Neonatal Mode SYS: 40 ~ 135 (mmHg) DIA: 15 ~ 100 (mmHg) Resolution: 1mmHg Pressure Accuracy: Maximum Mean error: ± 5mmHg Maximum Standard Deviation: 8mmHg Overpressure Protection: Adult Mode: 280 (mmHg) Neonatal Mode: 150 (mmHg) Alarm Limit: SYS: 50 ~ 240 mmHg DIA: 15 ~ 180 mmHg Standards: Meets performance standards of ANSI/AAMI SP10:2002 SpO2 (Optional): ASpO2: Anti-motion SpO2 SpO2 % Range: 0~100% SpO2 Accuracy: ±2% (70 ~ 100%,non-motion) ±3% (70 ~ 100%, motion) Pulse Rate Range: 30-250 bpm Pulse Rate Accuracy: ±2 bpm (non-motion) ±3 bpm (motion) Alarm Upper-Lower Limit: Upper Limit: 70 ~ 100% Lower Limit: 70 ~ 100% SpO2 Probe: Red Light LED Wavelength: 660nm ± 5nm Infrared Light LED Wavelength: 940nm ±10nm Standards: Meets performance standards of EN ISO 9919:2005 EtCO2 Mode of Sampling: Sidestream or Mainstream Principle of Operation: Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts CO2 measurement Range: 0 to 150 mmHg (0 to 19.7%, 0 to 20 kPa) CO2 Calculation Method: BTPS (Body Temperature Pressure Saturated) O2 Resolution: 0.1mmHg (0-69mmHg) 0.25mmHg (70-150mmHg) CO2 Accuracy: 0 ~ 40 mmHg ± 2 mmHg 41 ~ 70 mmHg ± 5% of reading 71 ~ 100 mmHg ± 8% of reading 101 ~ 150 mmHg ± 10% of reading Above 80 breath per minute ± 12% of reading Sampling rate: 100 Hz Respiration Rate: 2 ~ 150 bpm Respiration Rate accuracy: ±1 breath Response Time: < 3 seconds - includes transport time and rise time Inspired CO2 measurement Range: 3 ~ 50 mmHg Standards: Meets performance standards of ISO/ FDIS 21647:2004 (E), ASTM F1456-01, IEC/CDV 60601-2-55 Networking Wired Networking Industry standard: 802.11 b/g wired network Frequency Range: 2.412 ~ 2.484 GHz Connected bedside number: Up to 16 bedside monitors Wireless Networking Up to 100 m indoors Industry standard 802.11 b/g wireless Supports TCP/IP and UDP/IP Protocols Power Source: External AC power or internal battery AC Power: 100 ~ 240VAC, 50/60Hz, 150VA Battery: Built-in and lithium Ion rechargeable, 12.6V/5Ah Charge Time: 8 Hours Operating Time: 3 Hours Environmental Specifications Temperature: Operating: 5 ~ 40 °C Storage: -10 ~ 45 °C Humidity Range Operating: : ≤80 % Storage: ≤80 % Fuse: 3.15A/250V LCD Specifications Display Type: TFT Color LCD Size (Diagonal): 5" Active Area: Width: 152.4 mm Height: 91.44 Color Arrangement: RGB-Stripe Dot Pitch Width: 0.0635 Height: 0.1905 Display Mode: Normally White, Transmissive Interface: Digital (TTL) Surface Treatment: Anti-Glare Touchscreen Specifications Type: Four Wire Analog Resistive Touch Panel Input Mode: Stylus Pen or Finger Connector: FPC Insulation Resistance: 25MΩ Voltage: 7VDC Chattering: 10 ms Transparency: 80% Surface Hardness: 3H Durability-Surfacing Scratching: Write 100,000 Active Force: 80 gf Knock Test: 1,000,000 times
Shipping Information
Please Inquire
Warranty & Returns
Warranty Information 18-Month Warranty
