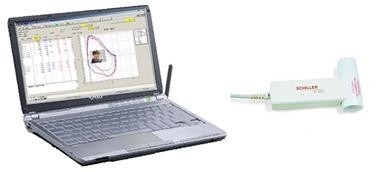

Schiller PC-Based Spirometry with SP-250 Sensor
Details
Materials Included SP-250 Sensor PC-Based Software CD 10 Flow Sensors 2 Nose Clips Interface adapter PC Spirometry User Manual
Additional Information
Please Inquire
Shipping Information
1-Year Warranty
Warranty & Returns
Technical Specifications Measured Values: FVC: FVC, FEV0.5, FEV1.0, FEV3.0, FEV0.5/FVC, FEV1.0/FVC, FEV3.0/FVC, FEF0.2–1.2, FEF25–75 %, FEF75–85 %, PEF, MEF75 %, MEF50 %, MEF25 %, FIVC, FIV1.0, FIV1.0/FIVC, FIV1.0/FVC, PIF, MIF 50 % SVC: SVC, ERV, IRV, TV MV: MV, RR, TV MVV: MVV, RR, TV Presentation: Flow/Volume Graph Volume/Time Graph Flow Loop Flow loop Measurement values table Measurement values table Trend display at >1 recording per patient Interpretation Quadrant Prediction Equation Adults: ECCS, Austria, Crapo, Morris, Knudson, Knudson 76, Polgar, Berglund, Finland, India, Composite Children: Quanier & Tammeling, Austria, India, Knudson, Knudson 76,Polgar Extrapolated predicted values Comparison Pre/Post medication possible Standards Compliance: ATS, OSHA, NIOSH SP-250 Dimensions: 4.6" x 1.4" x 1.1" Measuring Method: Pneumotachometer Measuring Accuracy: According ATS < 3% Flow Impedance: < 0.2 mbar *s/l at 12 l/s PC Requirements: Pentium II RS-232 Interface for Sensor Windows 98, NT or 2000
