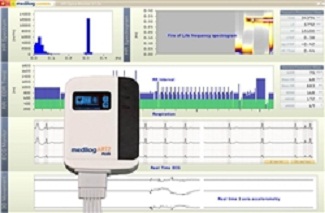

Schiller’s medilog® Holter system provides a comprehensive analysis of the human being as a whole. Atrial fibrillation detection, sleep apnea screening and the determination of the quality of life are just some of the exceptional features of medilog®. Designed with feedback from hundreds of cardiologists and cardiac technicians worldwide, medilog® offers unparallelel accuracy and opens up new possibilities for Holter analysis. With medilog®DARWIN 2, you can now process a routine Holter ECG quicker and more accurately. In addition to the detection of all cardiopathological events, medilog®DARWIN2 provides a comprehensive analysis of the human being as a unit. Functional atrial diagnostics, apnea diagnostics and the determination of the quality of life are just some of the exceptionally useful features that medilog®DARWIN 2 uses to filter information from a Holter recording without any additional sensors. Features and Benefits Pure ECG Technology records ECGs in a clearer way than is achieved with comparable products. Holter ECG recordings show fewer artefacts and require less time for post-processing - even for active patients. Heart Rate Variability (HRV) analyzes beat-to-beat time intervals of the heart rate. Throughout a 24-hour period the heart rate is continuously adjusted by the autonomic nervous system in response to internal and external triggers like physical activation, stress, relaxation, recovery and sleep. Fire of Life software analyzes and displays HRV in a new way to help judge autonomic nervous system functions. Indicates if therapeutic actions or lifestyle changes are successful in reducing stress and improving recovery. Apnea Detection allows doctor to locate all apneas at a glance using the colored apnea overview screen. No ECG beat or arrhythmia editing is necessary. ST-/QT-/pacemaker analysis QRS detection P-wave detection and atrial analysis Motion detection 3-channel ECG Max. 80 hours recording time Water resistant
Materials Included AR-12 Plus Unit Patient Cable AC Adapter Carry Case SD Memory Card DARWIN2 Physician Enterprise Software USB Dongle Version User Manual
Technical Specifications Dimensions: 2" x 3" x 1" (Without Cable) Weight: 4 lbs Protection Against Ingress of Water: IPX4 (In Protective Pouch) Real-time analysis (temporal resolution) R Peak: 250 μs P and T: 2000 μs Pacemaker: 250 μs ECG Dynamic Bandwidth: 12 - 14 mV, typically 13 mV Analogue Bandwidth: 1.6 kHz Lower Filter Frequency: 0.045 Hz Patient Cable: 7 Lead Channels: 3 Sampling Rate: 4000 - 8000 Hz Recording Rate AR12 Plus: 125, 250 or 1000 Hz (with 3-lead patient cable: 250 Hz) Resolution: 12 bit Acceleration Sensor Channels: 3 Sensitivity: 200, 300 or 800 mV/g Power Supply: Vin (Supply Voltage) 1 x 1.5v Battery: AAA Battery Internally Occurring Voltage: 3 - 12V, typically 3V Operating Duration: Approx. 80 Hours at Recording Rate of 125 Hz Approx. 50 Hours at Recording Rate of 250 Hz Approx. 48 Hours at Recording Rate of 1000 Hz Ambient Conditions (Storage and Operation) Temperature: 10 - 45°C Humidity, Non Condensing: 10 - 90 %RH Atmospheric Pressure: 700 - 1060 hPa Reimbursement Information Typical Cardio Holter Reimbursement: $92.59. CPT 93224, ICD9s: 780.2 Syncope, 780.4 Dizziness, 785.0 Tachycardia Unspecified, 785.1 Palpitations, 786.50 Chest Pain, 786.51 Precordial Pain, 786.52 Painful respiration, 786.59 Chest discomfort, and others.
Please Inquire
1-Year Warranty
