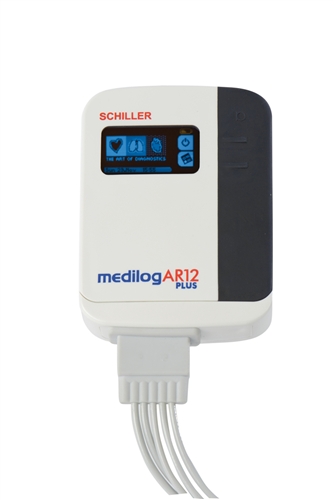

Schiller Medilog AR12 Plus Holter Recorder
Details
The longterm holter recorder medilog® AR12 plus offers a wide range of ECG analysis options. Features and Benefits Pure ECG Technology records ECGs in a clearer way than is achieved with comparable products. Holter ECG recordings show fewer artefacts and require less time for post-processing - even for active patients. Heart Rate Variability (HRV) analyzes beat-to-beat time intervals of the heart rate. Throughout a 24-hour period the heart rate is continuously adjusted by the autonomic nervous system in response to internal and external triggers like physical activation, stress, relaxation, recovery and sleep. Fire of Life software analyzes and displays HRV in a new way to help judge autonomic nervous system functions. Indicates if therapeutic actions or lifestyle changes are successful in reducing stress and improving recovery. Apnoe Detection allows doctor to locate all apnoeas at a glance using the coloured apnoea overview screen. No ECG beat or arrhythmia editing is necessary. ST-/QT-/pacemaker analysis. QRS detection. P-wave detection and atrial analysis. Motion detection. Wireless BluetoothTM interface. Max. 80 hours recording time. Recorder comes in 7 leads, 3 Channel Waterproof resistant
Additional Information
Materials Included AR-12 Plus Unit Patient Cable AC Adapter Carry Case SD Memory Card User Manual
Tech Specs
Technical Specifications Dimensions: 2" x 3" x 1" (Without Cable) Weight: 4 lbs Protection Against Ingress of Water: IPX4 (In Protective Pouch) Real-time analysis (temporal resolution) R Peak: 250 μs P and T: 2000 μs Pacemaker: 250 μs ECG Dynamic Bandwidth: 12 - 14 mV, typically 13 mV Analogue Bandwidth: 1.6 kHz Lower Filter Frequency: 0.045 Hz Patient Cable: 7 Lead Channels: 3 Sampling Rate: 4000 - 8000 Hz Recording Rate AR12 Plus: 125, 250 or 1000 Hz (with 3-lead patient cable: 250 Hz) Resolution: 12 bit Acceleration Sensor Channels: 3 Sensitivity: 200, 300 or 800 mV/g Power Supply: Vin (Supply Voltage) 1 x 1.5v Battery: AAA Battery Internally Occurring Voltage: 3 - 12V, typically 3V Operating Duration: Approx. 80 Hours at Recording Rate of 125 Hz Approx. 50 Hours at Recording Rate of 250 Hz Approx. 48 Hours at Recording Rate of 1000 Hz Ambient Conditions (Storage and Operation) Temperature: 10 - 45°C Humidity, Non Condensing: 10 - 90 %RH Atmospheric Pressure: 700 - 1060 hPa
Shipping Information
Please Inquire
Warranty & Returns
1-Year Warranty
