Details

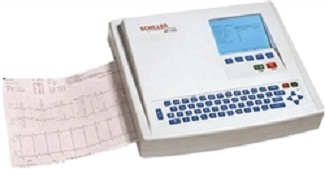

The Schiller AT-102 SCM is an excellent LAN-ready, multifunction, 12-channel ECG. Capable of recording and automatically analyzing resting ECGs. Works with HL, NextGen, and EMR! Features and Benefits General Intuitive, easy use with direction function keys Serial data transfer to PC for storage of both resting ECG and spirometry recordings XML data transfer for resting ECG to PC or Information Systems via ethernet or modem interfaces (optional) A4-formated (8.5 x 11 inches) printouts on internal or external printer Basic exercise test capability (optional) Possibility for external monitor connection (optional) Resting ECG Integrated 3-channel monitor Alphanumeric keyboard Direct keys for the most important functions Easy print: integrated high-resolution A4 (8.5 x 11 inches) thermal paper, subsequent printout on thermoreactive paper possible Interface for external printer for A4 (8.5 x 11 inches) printouts on regular paper Internal memory for up to 40 records Interface for data-transmission Exercise ECG RS-232 port for peripheral devices such as treadmills, bicicles, etc For exercise ECG, several standard protocols are available for bicycle and treadmill ergometers; the user can either select a standard protocol from a table or define a new protocol J-point settings: J+20, +40, +60, +80 ms; default: +60ms Spirometry Unique SP-250 with disposable sensor to reduce the risk of contamination. SP-260 with reusable sensor. Simple and fast calibration. Memory for up to 40 records. Inspiratory and exspiratory test; pre and post medication tests. Selectable predicted value tables. Real-time curves and measurement information on the large screen. Display 3 leads can be selected via direct keys ST slope and amplitude (in mV/mV/s) of a lead (the lead can be selected in the setup; default is V5) Stage, time, and current load Blood pressure (blood pressure measurment: automatic - if a bicycle contains an interface for the blood pressure transfer - or manual) Printouts Online printout: 6 leads on the internal thermal printer. 10-sec printout: a 10-second printout can be initiated at any time on the internal thermal printer. Two print formats are available for the stage printouts on the internal thermal printer. All test data is listed in a tabular form XML Data Transmission (Optional) The AT-102 is available with the internal SCHILLER Communication Module (SCM), which transmits Resting ECG data on XLM format to a PC or Information Systems via ethernet interface or a built-in analogue modem (optional). This enables the AT-102 to be an integrated part of a larger systems solution. Secure transmission of patient data via the Internet is possible using 1024-bit strong encryption. Equipped with the add-on SCM Server, the SCHILLER Data Management System SEMA-200 can receive the XML output from the SCHILLER Communication Module.
