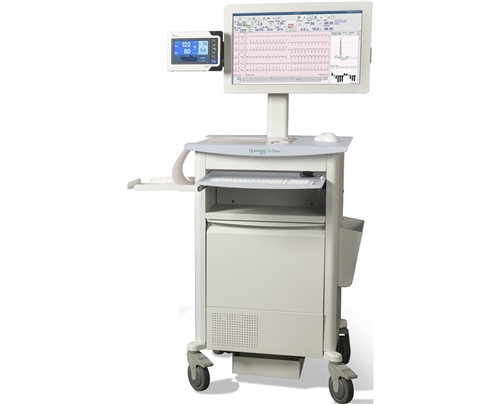

Q-Stress Cardiac Stress Testing System
Details
The Quinton Q-Stress stress system, now in its ninth generation, provides superior clinical data while meeting procedural needs. Q-Stress delivers extremely clear tracings with clean waveforms even at higher speeds and steep grades. Good for pharmacological stress tests too. Features and Benefits VERITAS™ algorithm provides 12-Lead ECG interpretation for adults, adolescents and children The system's left-to-right flow and intuitive controls guide users through the procedure The Source Consistency Filter (SCF) technology minimizes noise and baseline artifact while maintaining a good quality ECG signal Uses Wireless Acquisition Module (WAM™) which digitally transmits ECG data, providing comfort and freedom for the patient Customizable reports allows data to be exported smoothly Tracings are accurate and clear, with clean waveforms even at high speeds and steep grades Available monitors: 24" LCD or Touchscreen monitor Communication choices include standard PDF, XML, HL7; optional DICOM capability available Optional Trigger Module for TTL/analog output available
Additional Information
Materials Included PC with 24" Flat Panel LCD or Touchscreen Monitor Thermal Printer Keyboard Mouse Isolation Transformer Patient Module 10-lead patient cable 10 replacable lead wires with pinch connectors Advanced or basic software Premium Cart Cart mount for Flat User's manual
Tech Specs
Technical Specifications Dimensions Height: 62.5” (From Floor to Display Top) Width: 24.6” (Desktop Only) 32.6” (With paper tray) 50” (With side shelf and paper tray) Depth: 22.5" Operating Systems: Microsoft® Windows® 7 Professional 32-bit or 64-bit Microsoft®; Windows® 10 Pro 64-bit Power Requirements: 100/120 VAC 50/60 Hz 2.5 A nominal; 200/240 VAC 50/60 Hz 1.3 A nominal Protocols: Standard: Bruce, Modified Bruce, Modified Balke, Naughton, USAF/SAM 2.0, USAF/SAM 3.3, Ramped-low, Ramped-medium, Ramped-high, Time-Ramp, and METs Ramp, Astrand (ergometer), pharmacological and more Custom: Up to 100 Custom Protocols Supported Front End Module AM12Q with AHA 10-electrode-pinch or snap connectors AM12Q with IEC 10-electrode-pinch or snap connectors WAM™ for wireless ECG acquisition with AHA 10-electrode-pinch connectors WAM for wireless ECG acquisition with IEC 10-electrode-pinch connectors ECG Lead Groups - Standard (Mason-Likar), Cabrera 12-lead Display Format - 3, 6, 6x2, or 12x1 channels Performed Standard — AAMI-EC11: gain accuracy, frequency response, CMRR, system noise, dynamic range, and input impedance Display and Analysis Filters: Source Consistency Filter (SCF), muscle artifact, baseline wander, 40 Hz low pass, line frequency Reports: In-Test: 12-lead, average beat report, 1-page write screen, continuous rhythm, arrhythmia events Final: Summary, tabular, worst case, average beats by stage or by minute, in-test ECG reports, trend graphs and peak exercise. Reports can be viewed, printed, saved in PDF format, emailed or exported in PDF, XML and optional DICOM Custom: Unlimited customizable reports External Device Interfaces Treadmills: Quinton TM 55/65, Trackmaster TMX428 and TMX425 Ergometers: Compatible with Ergoline and Lode communication protocols Blood Pressure Monitors: SunTech® Tango®+ and Tango M2 Printers Thermal: High-resolution Z200+ with automatic feed and continuous printing capability (requires additional network port) Paper: 8.5" x 11” Network Interface: Microsoft-compatible networking for storage, distribution and email; 100 Mbps connection or better is required
Shipping Information
Please Inquire
Warranty & Returns
13 Month Warranty including parts and labor
