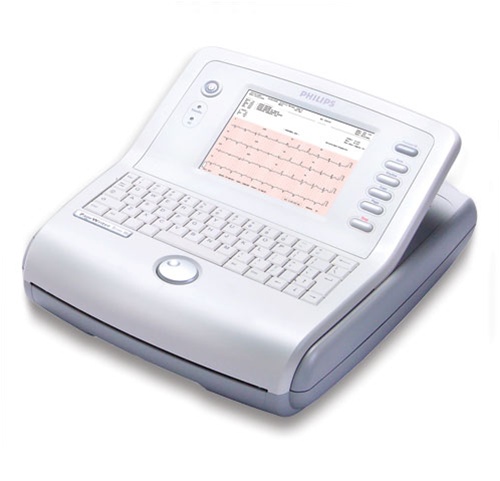

Philips PageWriter Trim III ECG Machine w/ Cart
Details
Does your organization store ECGs in a central management system? Or do you network with cardiologists who overread ECGs and provide second opinions? Then PageWriter Trim III is for you. This proven performer supports the reporting, storage, and transmission of 12-lead ECG data using industry standard XML. You can connect directly to Philips TraceMasterVue ECG Management System. ECGs can be transmitted anywhere at anytime allowing you instant, secure access to patient reports. Features and Benefits Easy-to-use features, such as a high-resolution 6.5-inch color screen Intuitive Patient Interface Module Multiple options to streamline information sharing including modem, USB, wired LAN or wireless 802.11 encrypted connectivity
Tech Specs
Technical Specifications Reasons: Selectable explanations of interpretive statements Lead Placement Detection: Detects 19 different lead reversals Borderline Statement Suppression: Three configurable settings Patient Interface Module: Remote, microprocessor-controlled, digital module provides 5uV resolution Size: 6.5 inch Colors: 64,000 Leads off advisory: Displays the label of any loose or disconnected leads/electrodes Lead Colors: Four Heart Rate: Continuous display of patient heart rate Print Preview: Full screen preview of waveforms prior to printing Dimensions: 388 x 310 x 176 mm (15.3 x 12.2 x 6.9 in) Weight (includes battery, patient module, lead wires, alligator clips, electrode pack and paper pack): 7.38 kg (16.3 lb) IEC 60601-1:1988 +A1:1991 +A2:1995 General Requirement for Safety IEC 60601-1-2:2001 General Requirements for Safety for Electromagnetic Compatibility IEC 60601-2-25:1993 + A1:1999 Safety of Electrocardiographs IEC 60601-2-51:2003 Particular requirements for the safety and necessary performance of electrocardiographs UL 2601-1:L1997 US General Requirements for Safety CAN/CSA-C22.2 No. 601.1-M90 S1:1994 B:1996;AAMI EC11 1991:Diagnostic Electrocardiographic Devices CISPR11:1997 + A1:1999 + A2:2002 Radio Frequency Disturbance, Limits and Methods of Test Group 1 Class B JIST 1202:1998 Japanese Industrial Standard for Electrocardiographs
Shipping Information
Please Inquire
